1. Using a 17 (0.67 in.) mm socket wrench and a long cable, fit to bolt (B), force tensioner (C) counterclockwise out from belt (A). 2. Keep tensioner in retracted position. 3. Install new belt in reverse order.

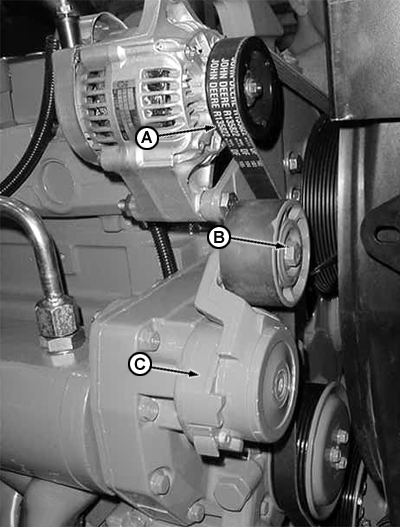

A-Belt B-Bolt C-Tensioner
GB52027,000004F -19-30JUN06-1/1
