Cleaning Radiator Screens and Fins

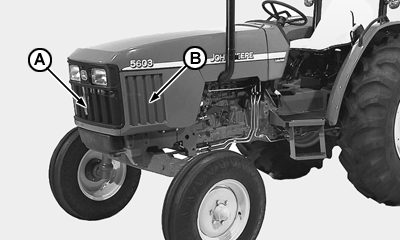

1. Each time dirt accumulates on screen (A) of tractor front or on lateral screens (B), turn off engine and clean them with a steel brush.

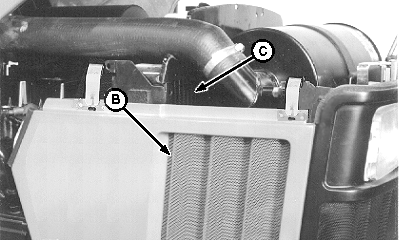

2. Remove lateral panels (B) and check for accumulated radiator dirt. In this case remove it with a steel brush or with compressed air.

causym CAUTION: Reduce compressed air to less than 210 kPa (2.1 bar, 30 psi) when using for cleaning purposes. Wear protective equipment.


3. If more cleaning is needed, clean the radiator from the rear with compressed air or water. Straighten bent fins.


A-Front screen
B-Lateral screens
C-Radiator

TS266
CQ279300
LV1910

GB52027,0000051 -19-29NOV06-1/1
