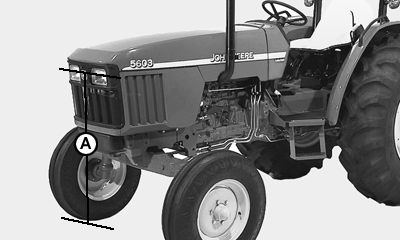

Adjusting Headlights
1.
Remove lateral screen shield.
2.
Turn screws counterclockwise to lower assembly and clockwise to raise it.
3.
To adjust the assembly to center of tractor, turn internal screw counterclockwise and external screws clockwise, turning each bolt equally.
4.
To adjust the assembly away from center of tractor, turn external screws counterclockwise and internal screw clockwise, turning each bolt equally.
NOTE:
Removal of clips (D) is not necessary for adjustment.
|
|
