Adjusting Toe-In-4x2 Axle

Using wrench, keep steering rod firm at point (A) and loosen nut (B).

Remove cotter pin and castle nut.

Remove articulated terminal (C).

Turn articulated terminal (C) to one side. After adjustment, mount terminal and tighten castle nut to 150 N·m (111 lb-ft) and mount cotter pin.

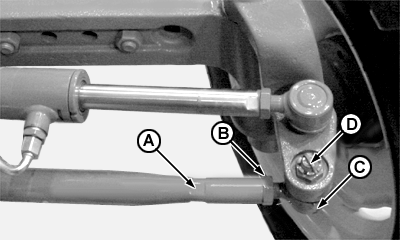

A-Recess on steering rod to wrench
B-Locknut
C-Terminal
D-Castle Nut

GB52027,000006D -19-03JUL06-1/1
