Checking Toe-In-4x2 Axle

Correctly adjusted toe-in facilitates maneuvering and increases the service life of the front tires.

Check toe-in as follows:

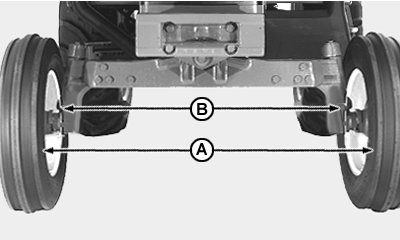

1. At half way point of tire height, measure distance (A) (front part of axle) between edges of rims.
2. In the same way, measure the distance at point (B) (rear part of axle).

Measurement (A) at front of tires should be between 3-7 mm (0.12-0.26 in.) less than measurement (B) at back of tires.
