Mounting Rear Wheel Counterweights

causym CAUTION: >Whenever mounting or removing counterweights, orient wheels so that the counterweight inserts are pointing upwards, so that they do not fall off.

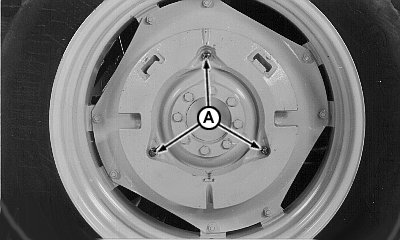

Mount the first counterweight over the wheel disk and insert and tighten three bolts (A).

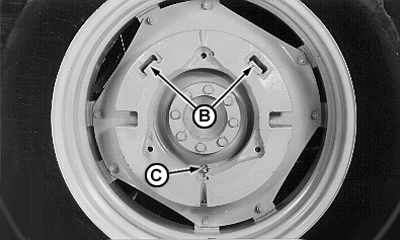

To mount additional counterweights, turn wheel until retaining grooves (B) face upwards. The second counterweight fits above and should be bolted over the first one with bolt (C).

NOTE: On this tractor counterweights are optional.

CQ279475
CQ279476

GB52027,0000155 -19-09FEB07-1/1
