If throttle rod loosens and does not maintain position, adjust it as follows:

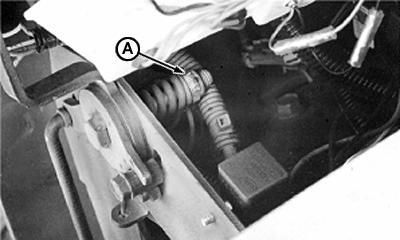

1. Remove cover. 2. Increase friction with adjustment nut (A). The spring provides tension through adjustment nut (A).
GB52027,0000169 -19-09FEB07-1/1
