Inspecting Air Filter Insert

1. Shine light on insert interior (2) with lamp (1) and check closely for damage. Discard any insert with even the smallest hole.
2. Check exterior screen for any deformation. Vibrations open a hole in the filter quickly.
3. Check if rubber sealing rings (3) are in good condition. If damaged, replace insert with a new one.

IMPORTANT: Do not put engine in gear without properly installed filter.

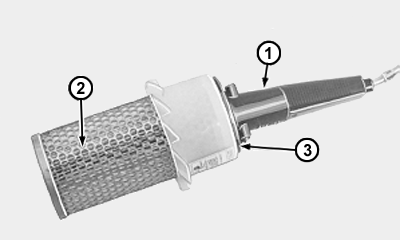

1-Light source
2-Insert
3-Rubber sealing ring

GB52027,000016C -19-09FEB07-1/1
