Selecting Drawbar Position

For maximum traction and efficiency, the drawbar should be put in short center position. (See Operator's Manual of Implement for more information).

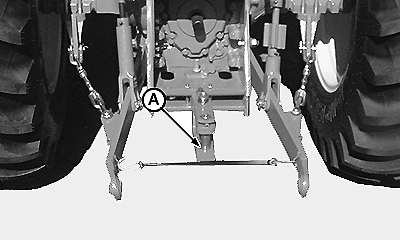

IMPORTANT: For implements driven by the PTO, the drawbar should be in long position (as shown) to leave a space of 355 mm (14.0 in.) between hitch hole (A) of drawbar and PTO shaft end.

A-Hitch hole on drawbar

GB52027,000016F -19-12FEB07-1/1
