Opening Hood

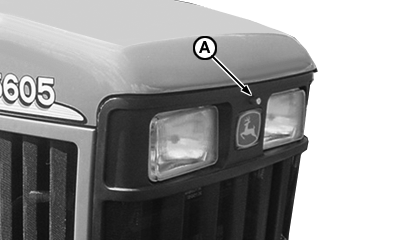

1. Push pin (A) inwards to unlock hood.

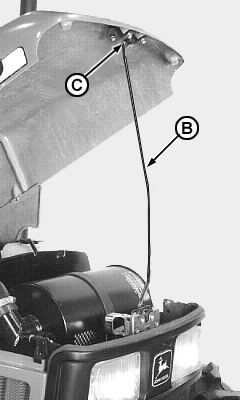

2. Lift hood and disengage support rod (B)
3. Insert support rod (B) in clip (C) to keep hood in elevated position.

A-Button for opening hood
B-Hood support rod
C-Hood clip

GB52027,0000176 -19-13FEB07-1/1
