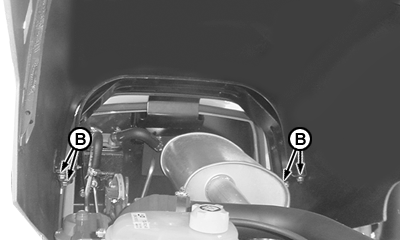

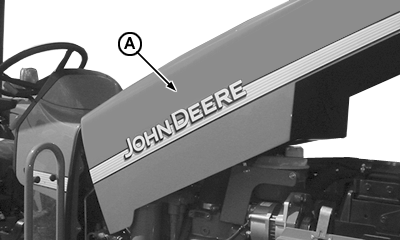

1. Remove the five bolts and lateral shield (A) from each hood side (internal). 2. Remove nuts (B) from each side of front hinge of hood. 3. Loosen hood support rod from clip and return to storing position. 4. Remove tractor hood.
GB52027,000017A -19-13FEB07-1/1
