Servicing Battery
1.
Clean battery with a clean, damp cloth. Keep connections (A and B) clean and tight. To eliminate corrosion, clean terminals with solution of four parts water one part sodium bicarbonate.
2.
Keep battery fully charged, especially in cold weather. If connecting battery charger, connect positive cable to positive battery terminal (A). Connect negative conductor of battery charger to ground on tractor chassis.
 CAUTION:
To avoid sparks, connect negative cable (ground) last and disconnect it first.

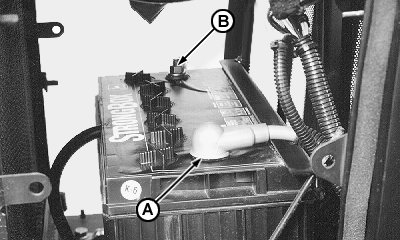

A-Positive terminal
B-Negative terminal
|
