Mounting Front Counterweights (Optional)

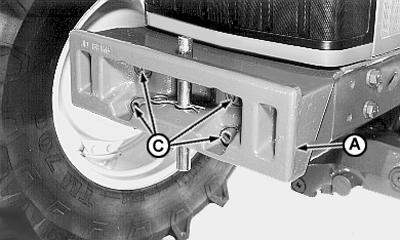

Tractor allows one counterweight base (A) with a maximum of 16 front counterweights.

IMPORTANT: Tighten attaching bolts (C) to 600 N.m (440 lb-ft).

Each additional counterweight weighs 50 kg (110 lbs).

A weight increase of 10 Kg (22 lb) ballasts the front axle 12 kg (26 lb) approx.

IMPORTANT: If it is necessary to tow a tractor uphill or to free a mired machine under application of great traction force, remove front counterweights and install pin (D) in towing position.

GB52027,000017D -19-13FEB07-1/1
