Replacing Air Filter Inserts

1. Open hood and remove right-hand lateral screen.
2. Loosen clips (B) of filter housing cover.
3. Turn filter cover (clockwise) so that the rubber valve faces radiator.
4. Remove filter cover.
5. Remove primary filter insert (C).
6. Clean internal housing dirt taking care not to damage secondary insert.

IMPORTANT: Never try to clean safety (secondary) insert. Always replace with new insert.

If it is necessary to replace the secondary insert, install a new insert immediately to prevent dust entering the air intake system.


7. The procedure for removing the secondary element is similar to that for removing the primary insert.

NOTE: When installing air filter cartridge, check the dust relief valve is facing down.

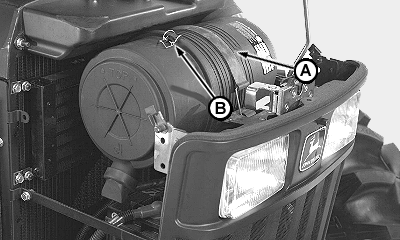

LV1954

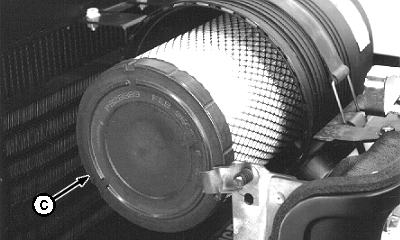

LV1955


A-Rubber strap
B-Clips
C-Primary filter insert

LT04177,000007B -19-25NOV04-1/1
