The electrical circuits are protected by fuses (except for the starting motor).

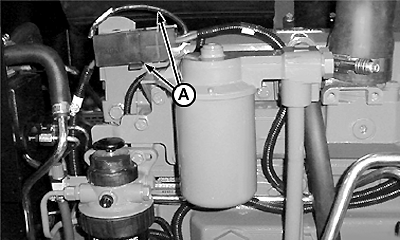

The main fuse (A) is located under the hood, on the right of the tractor, above the fuel filter.
LT04177,0000080 -19-27MAY03-1/1
