Tire Denomination

Steering wheel

Drive wheel

Old

1 - Width of section on largest recommended rim (in inches).

2 - Width of section on smallest recommended rim (in inches).

3 - Nominal diameter of rim (in inches). Marking of denominations may also be used simplified:

Current

4 - Width of tire section (in inches).

5 - Nominal diameter of rim (in inches).

Type Tread Design
F1 Normal (1 grip) - waterlogged terrain or soft soil
F2 Normal (2 or 3 grips) - general work
F3 Multi-grip - industrial tractors



Type Tread Design
R1 Normal traction (low grip) - dry terrain, general work
R2 Normal Extra (deep grip) - waterlogged terrain or soft soil
R3 Superficial grip (little depth) - golf course, sand
R4 Industrial - consistent and irregular terrain



For more detailed information, see tire manufacturer's manual or contact your dealership.

CQ281141

Tire Denomination

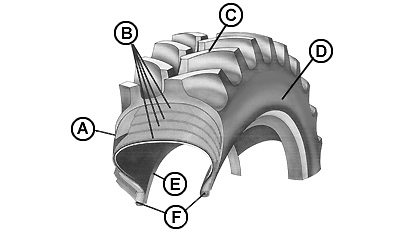

CQ281142

Tire Parts


A-Carcass
B-Plies
C-Tread
D-Sidewall
E-Liner
F-Steel bead
