Checking Front-Wheel Drive Oil Level

  • Park tractor on flat and level terrain to be sure oil level checks are correct.

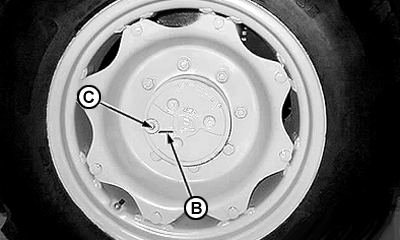

  • Position front wheel so that oil mark (B) is level with ground.

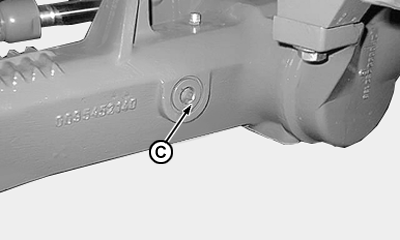

  • Remove plugs (C) of differential and wheel hubs.
  • Oil should be at the level of the plug holes.
  • Mount the plugs and tighten to 50 N.m (35 lb-ft).
CQ161740
CQ161760

LT04177,000016F -19-15APR05-1/1
