Replacing Fuel Filter

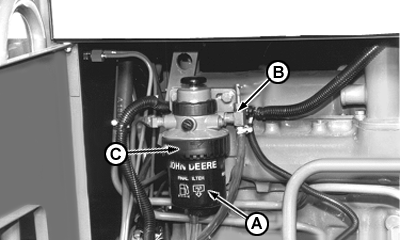

Change element (A) at least once a year.

1. Close fuel shut-off valve (B).
2. Remove retaining ring (C) and the filter.
3. Install new filter with retaining ring, tightening by hand.
4. Open fuel shut off valve and bleed off air for filter. (See, " Bleeding the Fuel System" in "Service "section).

CQ161730

LT04177,0000263 -19-24JUN06-1/1
