Replacing Bulbs

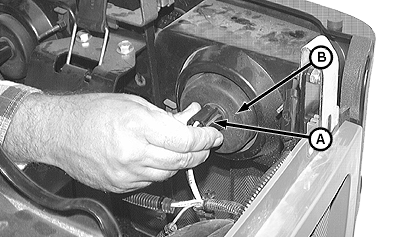

1. Remove connector (A) from headlight.
2. Remove anti- dust seal (B).

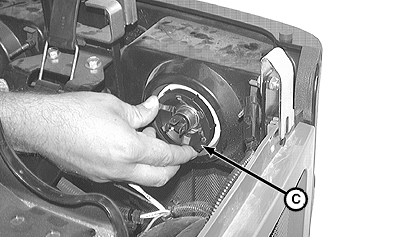

3. Twist assembly (C).

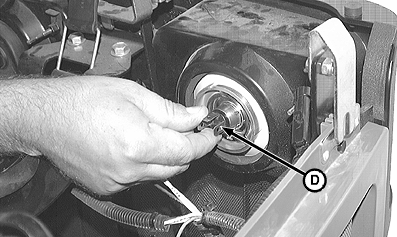

4. Remove bulb (D).
5. Install bulb, assembly, seal and connector in reverse order from disassembly.

LV3030
LV3031
LV3032

OU92976,00000F2 -19-28NOV06-1/1
