Separator Engage Switch (Yellow)

NOTE: Engage separator prior to engaging header.

H86944
H86944-UN-20NOV06

H86945
H86945-UN-20NOV06

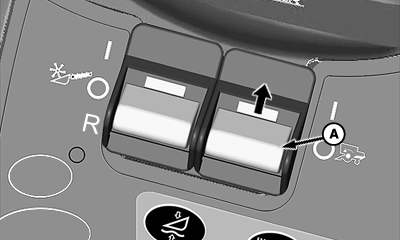

A - Separator Engage Switch

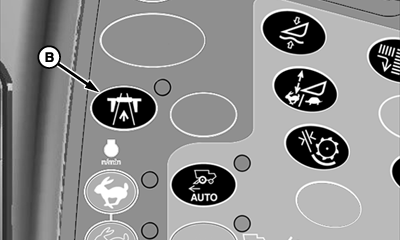

B - Road Transport Disconnect Switch

Separator engage switch (A) allows the separator to be turned ON or OFF. Push down and forward to lock switch in the ON position or pull back on switch to turn OFF.

System Requirements:

  • Separator engage switch must be OFF to start machine.
  • Engine is running at low idle.
  • Road transport disconnect switch (B) must be in field position.

Separator drive speed adjust and cleaning fan speed adjust systems only work when the separator is running.

NOTE: If discharge beater speed drops below 300 rpm, separator will disengage.

DF67602,000020B-19-20131111
