Every 6000 Hours or 6 Years

1. IMPORTANT: When COOL-GARD™ II or COOL-GARD™ II PG is used, the drain interval is 6 years or 6000 hours of operation.

   If a coolant other than COOL-GARD™ II or COOL-GARD™ II PG is used, reduce the drain interval to 2 years or 2000 hours of operation.


   CQ280437-UN-27AUG08

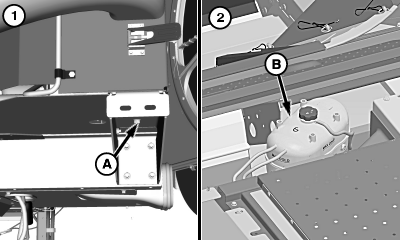

   H91173-UN-17APR08

   A - Drain

   B - Surge Tank

   Radiator - Open drain (A) to remove coolant from radiator.

---




2. NOTE: Air becomes trapped in Exhaust Gas Recirculation (EGR) cooler during the coolant fill operation. This trapped air will cause severe damage to cooler and turbo charger. Use proper filling and bleeding procedure shown in Service Engine section to avoid damage to components.

   Surge Tank - Flush and refill with correct coolant and conditioner (see Cooling System—Draining in Service Engine section and Engine Coolant recommendations given in Fuels and Lubricants section). Check engine coolant level in surge tank (B) with engine cold. Level must be up to “Max Cold” line.
