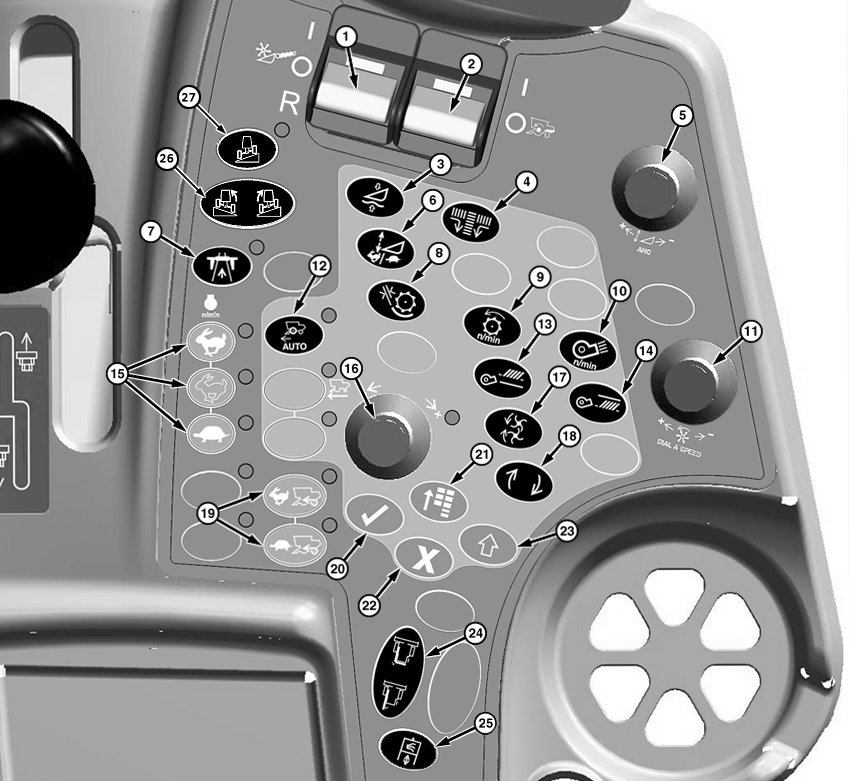

Armrest Console Controls

CQ282474-UN-29DEC09

1 - Header Engage and Feeder House Reverser Switch

2 - Separator Engage Switch

3 - Cutterbar Pressure Adjust Switch

4 - Not Used

5 - Header Height/HydraFlex™ Pressure Control Dial

6 - Not Used

7 - Road Transport Disconnect Switch

8 - Threshing Clearance Adjust Switch

9 - Threshing Speed Adjust Switch

10 - Cleaning Fan Speed Adjust Switch

11 - Dial-A-Speed™ Dial

12 - Harvest Smart™ Feed Rate Enable Switch (Optional)

13 - Chaffer Adjust Switch (Optional)

14 - Sieve Adjust Switch (Optional)

15 - Engine Speed Switches

16 - Selection Dial

17 - Spreader Speed Adjust Switch

18 - Not Used

19 - Four Wheel Drive Switches (Optional)

20 - Confirm Switch

21 - Main Menu Switch

22 - Cancel Switch

23 - Display Select Switch

24 - Not Used

25 - Air Compressor Switch

26 - Manual Self-Leveling Shoe Switch (Optional)

27 - Automatic Self-Leveling Shoe Switch (Optional)
