Grain Tank Full Indicator

CAUTION: Shut OFF engine, set parking brake and remove key.

NOTE: Header drive must be engaged for buzzer to sound.

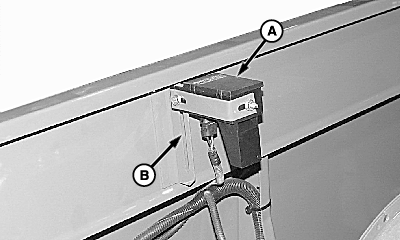

H76247-UN-30APR03

A - Sensor

B - Slot or Holes

Grain tank full indicator will show on CommandCenter display immediately, but a delay of two second delay will occur between the tripping of the sensor and the buzzer sounding.

Adjust sensors by moving them up or down in slots (B). This adjusts the switch "trip" point. The higher the sensor is moved up in the slot or holes, the fuller the grain tank will be at the time the buzzer sounds.

If greater grain tank fill is desired, the mounting bracket can be turned over.

IMPORTANT: When bracket is reversed, the bracket will be above the grain tank extension.
