Feeder House Conveyor Speed (Optional High Speed Feeder House Sprocket)—Changing

CAUTION: Raise feeder house, lower safety stop, shut OFF engine, set parking brake and remove key.

NOTE: 26/38 tooth sprocket is available as a bundle, see your John Deere dealer.

H71646
H71646-UN-16APR02

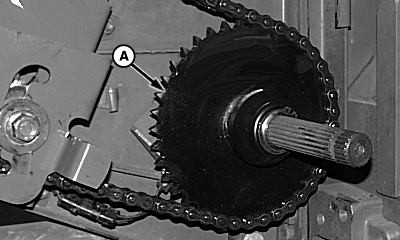

A - Sprocket

Feeder house conveyor chain can be set to two different speeds by selecting drive sprocket (A) on right-hand side of lower shaft.

Use small sprocket for low speed and large sprocket for high speed.

    Important Notes About 38 Tooth Sprocket:

  • 38 tooth sprocket is not recommended for corn use.
  • 38 tooth sprocket should only be used with variable speed drive (if equipped) set to slowest speed.

    Recommended for conditions when feeding is poor due to following crops and conditions:

  • Crops: Barley, Oats, Rice, Rye and Wheat
  • Conditions: High Volume, Green, Wet, Windrowed and Poor Feeding

As crop conditions change or feeding improves (dryer, more even windrows, lighter straw), it is recommended to use the 26 tooth sprocket. This slows chain speed and reduces potential for straw damage or pre-threshing and extends chain life.

  1. NOTE: See Feeder House Conveyor Speed—Changing in this section for moving drive chain to smaller sprocket.

    H71650
    H71650-UN-16APR02

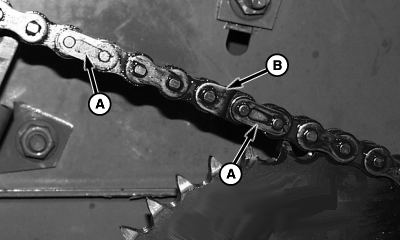

    A - Master Links

    B - Spliced Chain (5 Links)

    Remove and retain master links (A) and spliced chain (B).


  2. Move chain to small sprocket and install master link.

  3. CQ280320
    CQ280320-UN-23APR08

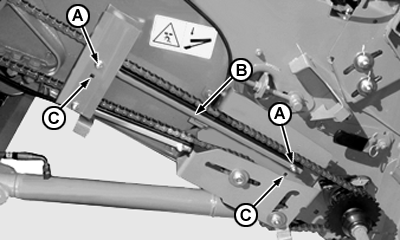

    A - Hardware

    B - Chain Guide

    C - Lower Holes

    Remove hardware (A) from chain guide (B).


  4. Install chain guide in lower holes (C) using previously removed hardware and tighten.

GB52027,00005A0-19-20080423
