OMCQ74935

CAUTION: Lower variable sheave is under spring tension; if belt is removed, it will snap back to a closed position.

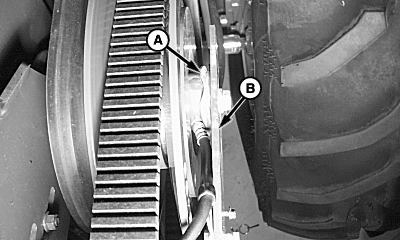

H84134
H84134-UN-26JUL05

Shield Removed for Clarity

A - Rubber Boot

B - Bracket

Start engine, engage separator and move engine speed switch to fast idle. Adjust feeder house drive belt to slow front shaft speed.

CAUTION: Shut OFF engine, set parking brake and remove key.

Disengage separator, stop engine and remove key.

Lower safety stop and remove left-hand feeder house shields.

Look under rubber boot (A) to verify if upper sheaves are fully open. At low speed position, outer sheave half bulb will be against bracket (B).

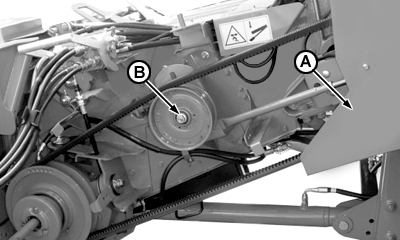

CQ280321-UN-23APR08

A - Shields

B - Nut

Remove shields (A).

Loosen idler nut (B) to relieve drive belt tension.

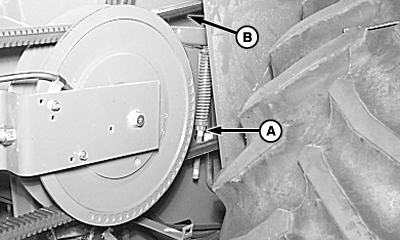

H83967
H83967-UN-18JUL05

A - Nut

B - Drive Belt

Loosen nuts (A) to relieve tension on reel drive belt (B).

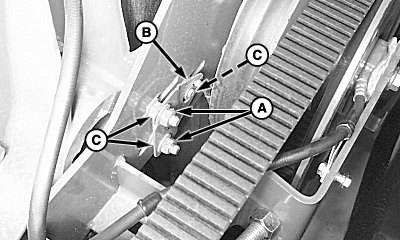

H84136
H84136-UN-27JUL05

A - Nuts (2 Used)

B - Bracket

C - Nuts (3 Used)

Remove and retain nuts (A) and bracket (B).

Loosen nuts (C) to allow upper sheave assembly to move.

NOTE: Nut (C) may be moved and jammed against nut (A). Together these nuts can be used to turn tensioner bolt.

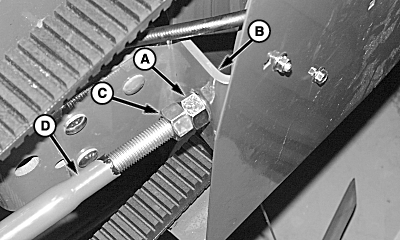

H84161
H84161-UN-28JUL05

A - Nut

B - Bracket

C - Nut

D - Tensioner

Loosen nut (A) away from bracket (B) until a 3 mm (1/8 in.) gap exists between either side of bracket.

Tighten nut (C) against nut (A).

NOTE: Threading bolt into tensioner allows sheave to move forward to remove drive belt.

Use nut (A) to screw threaded bolt into tensioner (D).

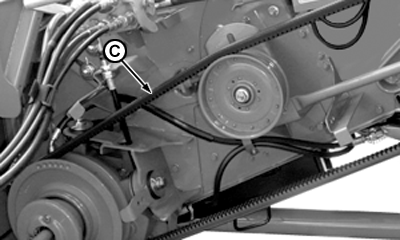

CQ280322-UN-23APR08

C - Drive Belt

Remove drive belt (C) from sheaves.

Install new drive belt and adjust tension. (See Feeder House Variable Speed Belt—Adjusting).

Install feeder house shields previously removed.

GB52027,00005A2-19-20080423
