Feeder House Variable Speed Drive Belt—Adjusting
NOTE: Minor adjustments can be made to variable speed belt by
raising idler. If a 3 mm (1/8 in.) gap cannot be reached by raising
idler, proceed to next step.

H84134-UN-26JUL05
A - Rubber Boot
B - Bracket
Start engine, engage separator and move engine speed switch
to fast idle. Adjust feeder house drive belt to
slow front shaft speed.
Disengage separator, stop engine and remove key.
Lower safety stop and remove left-hand feeder house shields.
Look under rubber boot (A) to verify if upper sheaves are fully
open. At low speed position, outer sheave half bulb will be against
bracket (B).

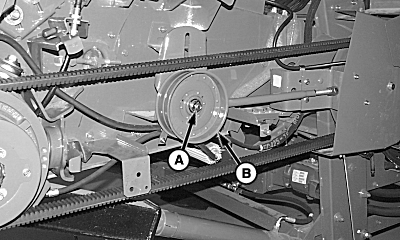

H84135-UN-26JUL05
A - Nut
B - Idler
Loosen nut (A) to adjust idler (B) to lower position.

H84136-UN-27JUL05
A - Nuts (2 Used)
B - Bracket
C - Nuts (3 Used)
Remove and retain nuts (A) and bracket (B).
Loosen nuts (C) to allow upper sheave assembly to move.
NOTE: Nut (C) may be moved and jammed against nut (A). Together
these nuts can be used to turn tensioner bolt.

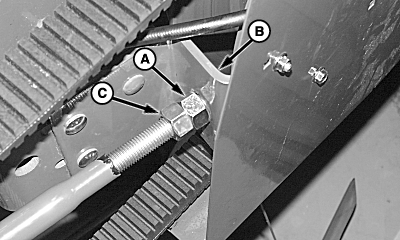

H84138-UN-26JUL05
A - Nut
B - Bracket
C - Nut
Loosen nut (A) away from bracket (B) until a 3 mm (1/8 in.)
gap exists between either side of bracket.
Tighten nut (C) against nut (A).
IMPORTANT: Rotate belt while adjusting sheave gap. Failure to
rotate belt while adjusting sheave gap will result in belt damage. A gap between sheave halves is important so sheave halves can
grip belt when in slow speed position. Cutting platform drive shaft
speed must be at slow speed.

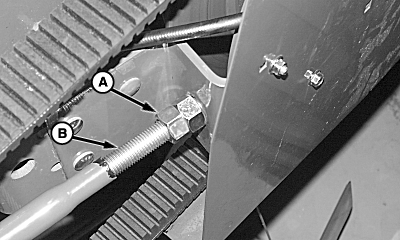

H84139-UN-26JUL05

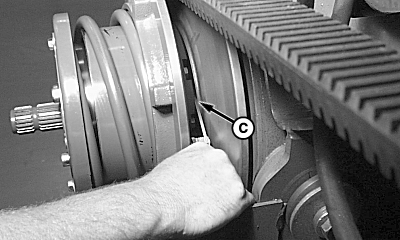

H84140-UN-26JUL05
A - Nut
B - Bolt
C - Gap, 3 mm (1/8 in.)
Turn nut (A) to adjust bolt (B).
Move upper variable sheave assembly with bolt until a 3 mm (1/8
in.) gap exists between lower sheave halves or upper sheave assembly
reaches end of slots.

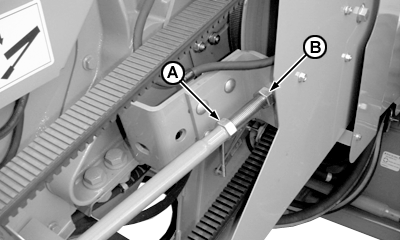

CQ280323-UN-23APR08
A - Nut
B - Nut
Tighten nut (A) first and then nut (B).

H84136-UN-27JUL05
A - Nuts (2 Used)
B - Bracket
C - Nuts (3 Used)
Tighten nuts (C) and install bracket (B) and retain with
nuts (A).
IMPORTANT: DO NOT stand on belt while pushing up on idler to
set gap.

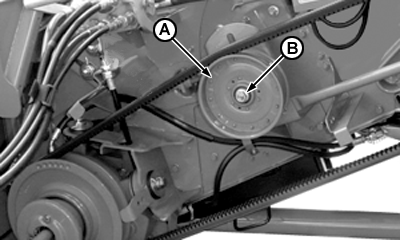

CQ280324-UN-23APR08
A - Idler
B - Nut
Raise idler (A) until idler touches drive belt.
Raise sheave an additional 25 mm (1 in.) and tighten nut (B).

H83967-UN-18JUL05
A - Nut
B - Drive Belt
Tighten adjusting nut (A) to position washer between end
of gauge and bottom of step to adjust reel drive belt (B).
Install feeder house shields.
|
|
