Single Point Latching—Adjusting

NOTE: Contour-Master Feeder House: Adjustments should only be made to cable at multi-coupler handle.

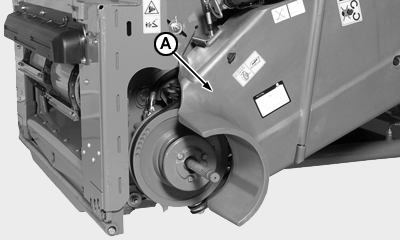

CQ280325
CQ280325-UN-23APR08

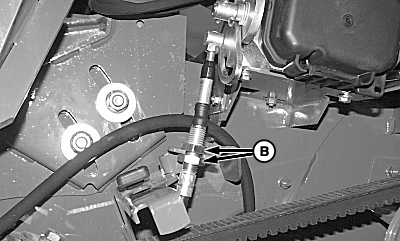

H78650
H78650-UN-17OCT03

A - Shield

B - Jam Nuts

Open left-hand feeder house shield (A).

Loosen cable jam nuts (B).

IMPORTANT: Verify handle is against stop on multi-coupler. Failure to verify handle is against stop will result in inaccurate pin dimensions and could result in header falling off while harvesting or transporting.

Rest multi-coupler handle against stop.

NOTE: Moving cable “up” in bracket pulls pin farther in.

Moving cable “down” in bracket pushes pin farther out.

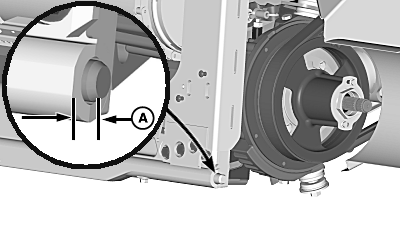

H84878
H84878-UN-04NOV05

Left-Hand Latching Pin

A - Dimension

Adjust cable in bracket as needed for proper pin adjustment:

  • Left-hand latching pin should be flush to +/- 2 mm (A).

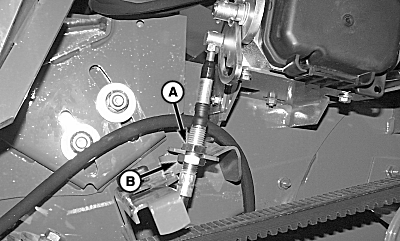

H81289
H81289-UN-23JUN04

A - Top Jam Nut

B - Bottom Jam Nut

Hold bottom jam nut (B) and tighten top jam nut (A).

IMPORTANT: Failure to verify pins are set to specified dimensions could result in header falling off while harvesting or transporting.

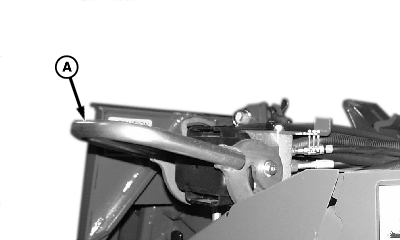

H81287
H81287-UN-23JUN04

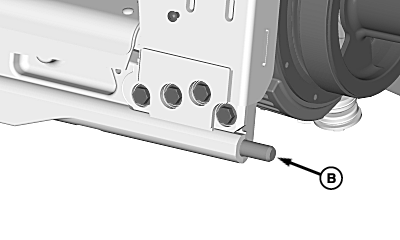

H84879
H84879-UN-04NOV05

A - Multi-Coupler Handle

B - Pins

Fully lower multi-coupler handle (A) and verify pins (B) (both sides) are set to specification. Readjust if not set to specification.

ItemMeasurementSpecification
Feeder House PinsDistance45 — 52 mm (1-3/4 in. — 2 in.)

GB52027,00005A5-19-20080423
