Every 50 Hours

  1. NOTE: Start machine and cycle separator through full speed range a couple of times to distribute grease evenly.

    CQ280387
    CQ280387-UN-27AUG08

    H87397
    H87397-UN-13FEB07

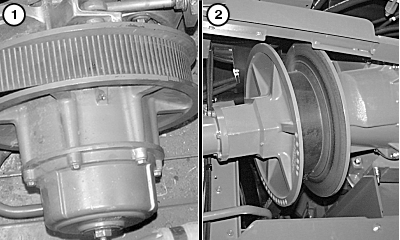

    Separator Variable Speed Driven Sheaves - Cycle sheaves through speed range if operated at high speed all the time. Cycling sheaves helps replenish bushings with grease already inside sheave cavity.


  2. Separator Variable Speed Driver Sheave - Cycle sheaves through speed range if operated at high speed all the time. Cycling sheaves helps replenish bushings with grease already inside sheave cavity.

GB52027,000060D-19-20080704
