Every 50 Hours

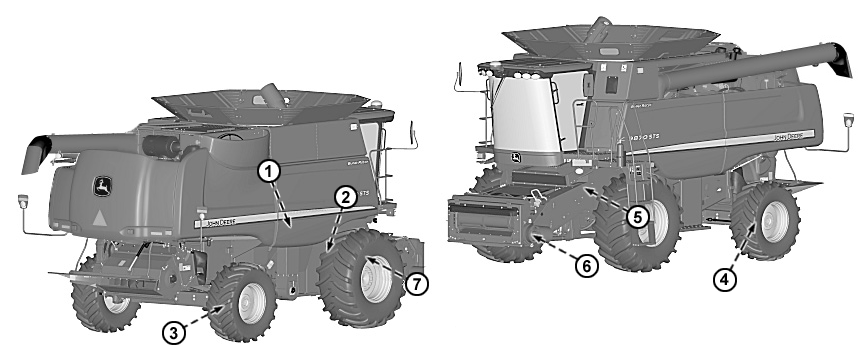

1.
   CQ280388-UN-27AUG08


   H86774-UN-02NOV06


   H86775-UN-02NOV06


   H87803-UN-04APR07


   H86897-UN-08NOV06

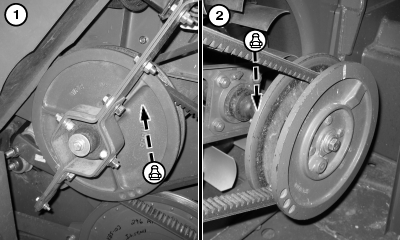

   Cleaning Fan Variable Upper Sheaves - Grease fitting on hub of outer sheave. Rotate sheaves for fitting access.

---




2. Cleaning Fan Variable Lower Sheaves - Grease fitting on hub located on inner sheave. Rotate sheaves for fitting access.

3. NOTE: When operating in mud and water grease rear axle spindle bearings and motor pivots every 10 hours. Normal conditions grease every 50 hours.

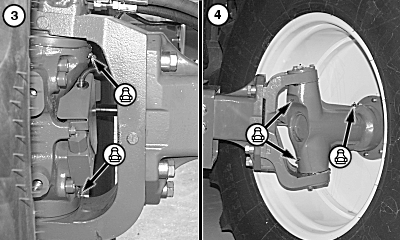

   Two Speed Four Wheel Drive Motor Pivots - Grease two fittings (both sides).

4. Two Wheel Drive Heavy Duty Axle Spindle Bearings/Pivot Pins - When operating in mud and water, grease fittings (both sides) every 10 hours. Normal conditions grease fittings (both sides) every 50 hours.

5. NOTE: It may be necessary to rotate sheave for access to fittings.

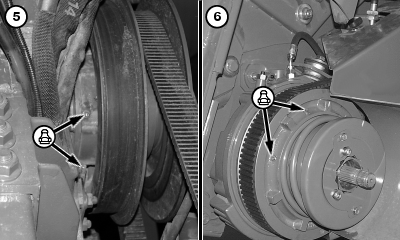

   Feeder House Upper Sheaves - Raise feeder house, lower safety stop and lube fittings from underside of feeder house.

6. NOTE: Use John Deere TY6341 Multi-Purpose SD Polyurea Grease or John Deere TY25744 Synthetic Grease when greasing feeder house reverser drive gearcase.

   Feeder House Reverser Drive Gearcase - Turn sheave so fittings are in the 12 and 2 o’clock positions.

   When operating in severe conditions or high yielding corn, grease fitting at 12 o’clock position, 5 - 8 pumps every 10 hours. Excess grease will purge from under spring.

   Grease fitting at 2 o’clock position, 2 - 3 pumps every 10 hours. Over greasing this fitting can allow grease to purge on belt and cause belt failure.

   When operating in normal conditions, grease 12 o’clock fitting (10 - 15 times) and 2 o’clock fitting (5 - 8 times) every 50 hours. After greasing, cycle variable sheaves through speed range a couple of times to ensure grease spreads evenly over cam surfaces.

7. Final Drive Outer Bearings - When operating in mud and water, grease fitting (both sides) every 10 hours. Normal conditions grease fitting (both sides) every 50 hours.
