Every 200 Hours

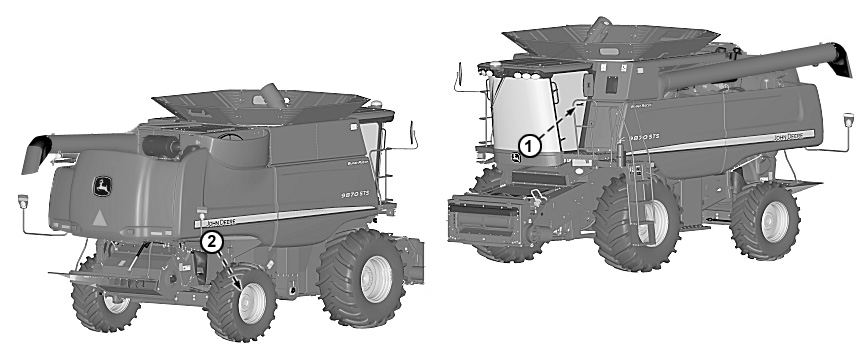

  1. CQ280391
    CQ280391-UN-27AUG08

    H86787
    H86787-UN-06NOV06

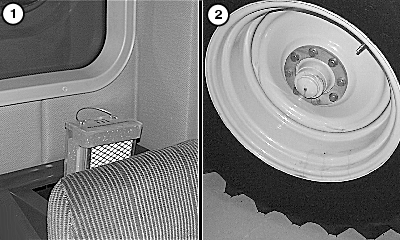

    Recirculating Filter - Remove tray and remove filter from inside of housing. Clean or replace filter. Check to be certain air flow arrow points toward front of machine.


  2. Tire pressure and Bolt Torque - Check front and rear tire pressure and wheel bolt torque (see Ground Drive and Rear Axle section).

GB52027,0000612-19-20080704
