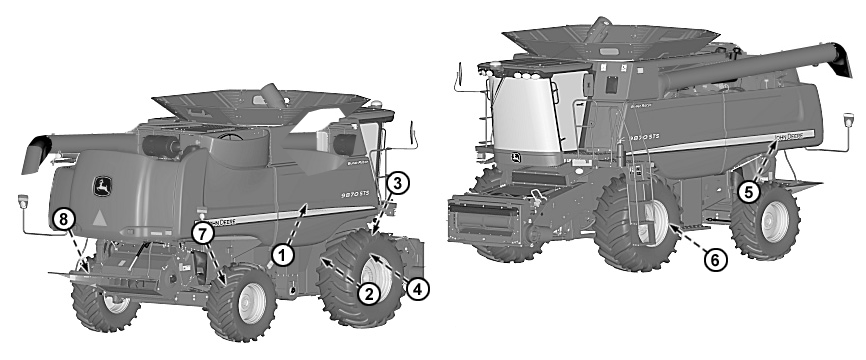

Every 400 Hours

1.
   CQ280394-UN-27AUG08


   H86797-UN-06NOV06


   H86798-UN-06NOV06


   H86799-UN-19APR07


   H86800-UN-19APR07

   A - Primary Countershaft Bearing

   B - Separator Bearing

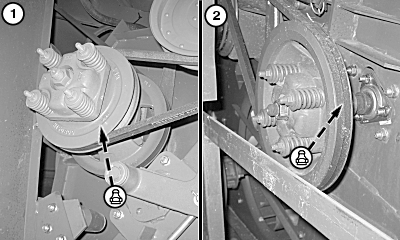

   Tailings Auger Drive Slip Clutch - Rotate sheave assembly to access fitting. Do not over grease.

---




2. Conveyor Auger Drive Slip Clutch - Rotate sheave assembly to access fitting. Do not over grease.

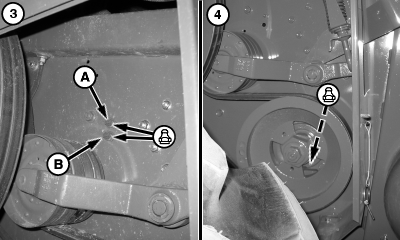

3. Right-Hand Side Lube Bank - Grease fittings to lubricate primary countershaft bearing (A) and separator bearing (B).

4. Feed Accelerator Bearing (Right Side) - Rotate sheaves to access fitting.

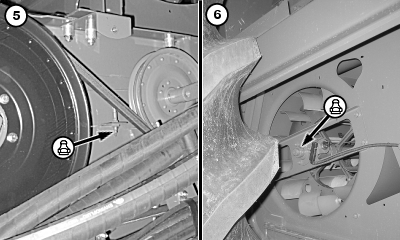

5. Discharge Beater Bearing - Grease fitting (both sides).

6. Cleaning Fan Shaft Bearings - Grease fitting (both sides).

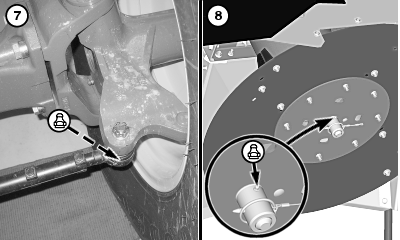

7. Rear Axle Tie Rod - Grease fitting (both sides) on power steering rod end ball joint.

8. Spreader Disk - Grease fitting (both sides) to prevent hubs from corroding to shafts.
