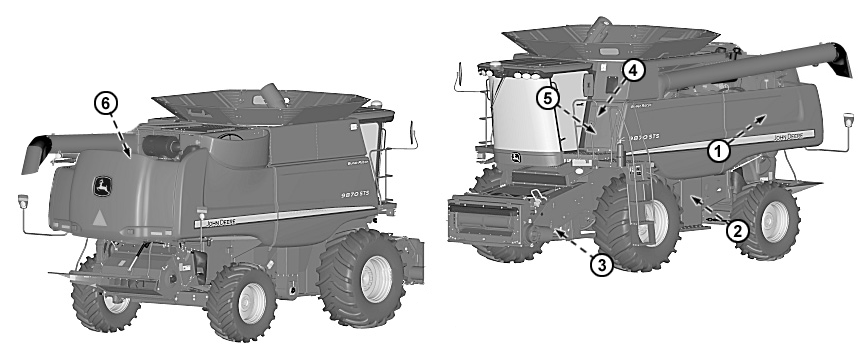

Every 400 Hours

1. NOTE:


   CQ280395-UN-27AUG08


   H86803-UN-16FEB07


   H86804-UN-16FEB07


   H86805-UN-17DEC07

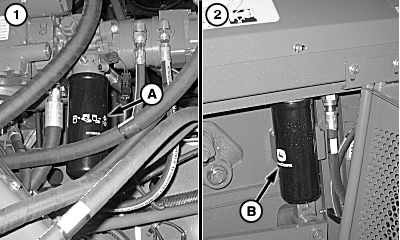

   A - Hydrostatic Charge Filter

   B - Hydraulic/Hydrostatic Filter

   C - Plug

   D - Dipstick

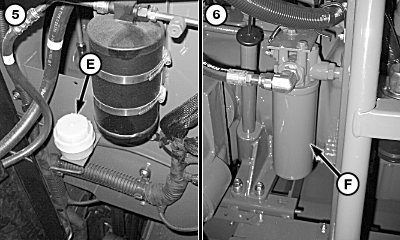

   E - Reservoir Cap

   F - Engine Power Take-Off Gearcase Filter

   It is not necessary to drain system when installing filters.

   Hydrostatic Charge Filter - Replace hydrostatic charge filter (A). Coat seal on new filter with oil. Hand tighten, then tighten 1/2 turn more.

---




2. Hydraulic/Hydrostatic Filter - Replace hydraulic/hydrostatic filter (B). Coat seal on new filter with oil. Hand tighten, then tighten 1/2 turn more.

3. Transmission Oil - Remove plug (C) and check oil level. Add oil as needed to within 12 mm (1/2 in.) of bottom of hole.

4. Primary Countershaft Gearcase Oil - Check primary countershaft gearcase oil level with dipstick (D). Add oil as needed.

5. Brake Fluid - Check brake fluid level. Look through reservoir cap (E). Add brake fluid to 6 mm (1/4 in.) from top. Do not let dirt get into brake fluid.

6. Engine Power Take-Off Gearcase Filter - Replace engine gearcase filter (F). Coat seal on new filter with oil. Hand tighten, then tighten 1/2 turn more.
