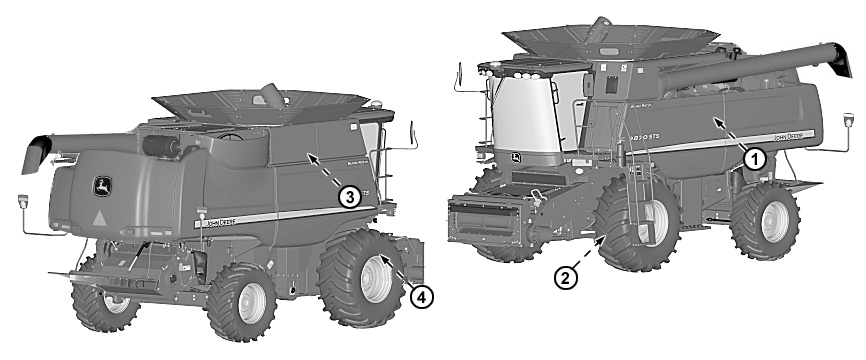

Every 400 Hours

1.
   CQ280397-UN-27AUG08


   H86807-UN-19APR07


   H87389-UN-14MAR07

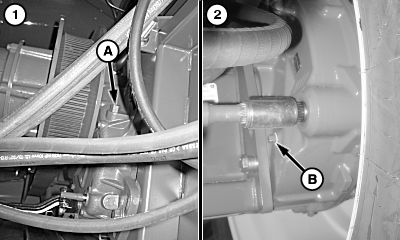

   A - Dipstick

   B - Plug

   Separator Drive - Remove dipstick (A) and check oil level. Oil level should be between grooves on dipstick. Add oil as needed.

---




2. Final Drive Oil - Remove plug (B) and check oil level (both sides). Oil should be within 12 mm (1/2 in) of bottom of hole. Add oil as needed.

3. NOTE: Loading auger gearcase does not need to be drained.

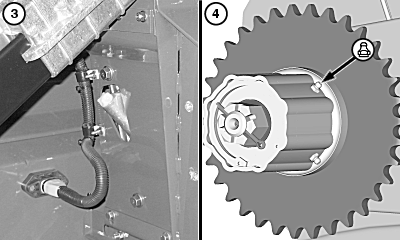

   Loading Auger Gearcase - Check oil level with dipstick and add oil as needed.

4. Feeder House Slip Clutch - Grease fitting on upper feeder house slip clutch, until grease is forced out past seal.
