Every 400 Hours
CQ280399-UN-27AUG08
H86841-UN-14MAR07

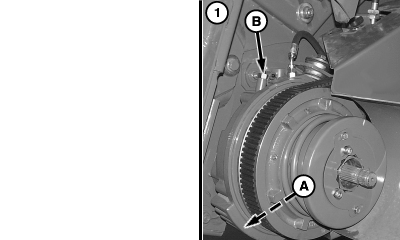

A - Plug
B - Dipstick

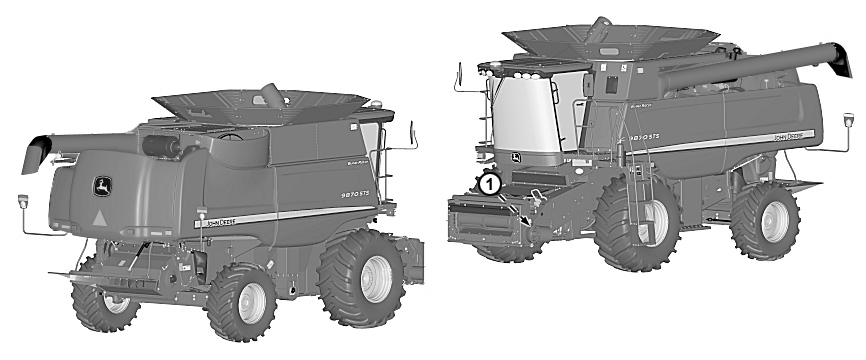

1. Feeder House Reverser Gearcase - Raise feeder house and lower safety stop. Drain oil with plug (A), wipe plug clean and refill at dipstick opening (B). Check oil level with feeder house raised up. Gearcases with an oil cooler will require gearcase be run for several minutes. This ensures that the cooler is filled with oil. Oil level must show on knurled part of dipstick.|
GB52027,000061A-19-20110617 |
