As Required

1.

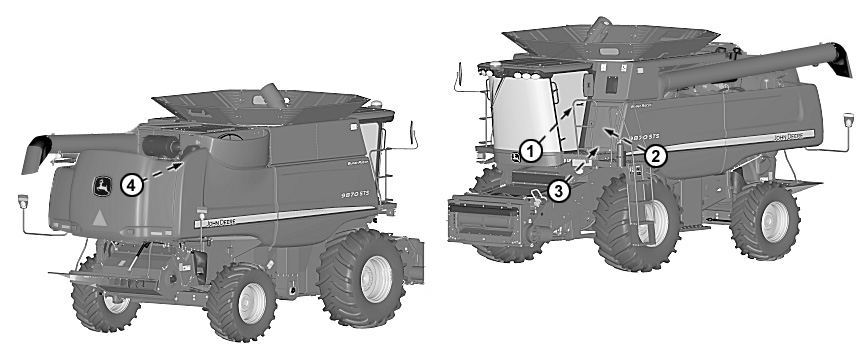

   CQ280439-UN-27AUG08


   H86827-UN-16FEB07


   H86828-UN-19APR07

   A - Windshield Washer Reservoir Cap

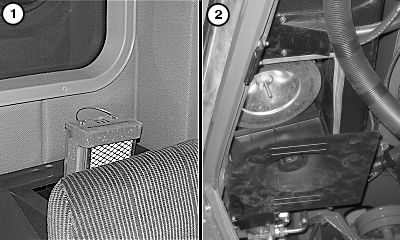

   Recirculating Filter - Remove tray and remove filter from inside of housing. Clean or replace filter. Check to be certain air flow arrow points toward front of machine.

---




2. Cab Fresh Air Filter - Turn knob and pull out tray. Remove wing nut and pull out filter. Clean or replace as needed.

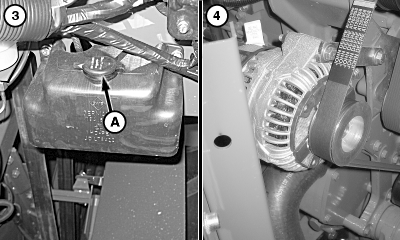

3. Windshield Washer Reservoir - Open cap (A) and fill windshield washer reservoir as needed.

4. Alternator Screen - Clean alternator screen when 50% covered with debris.
