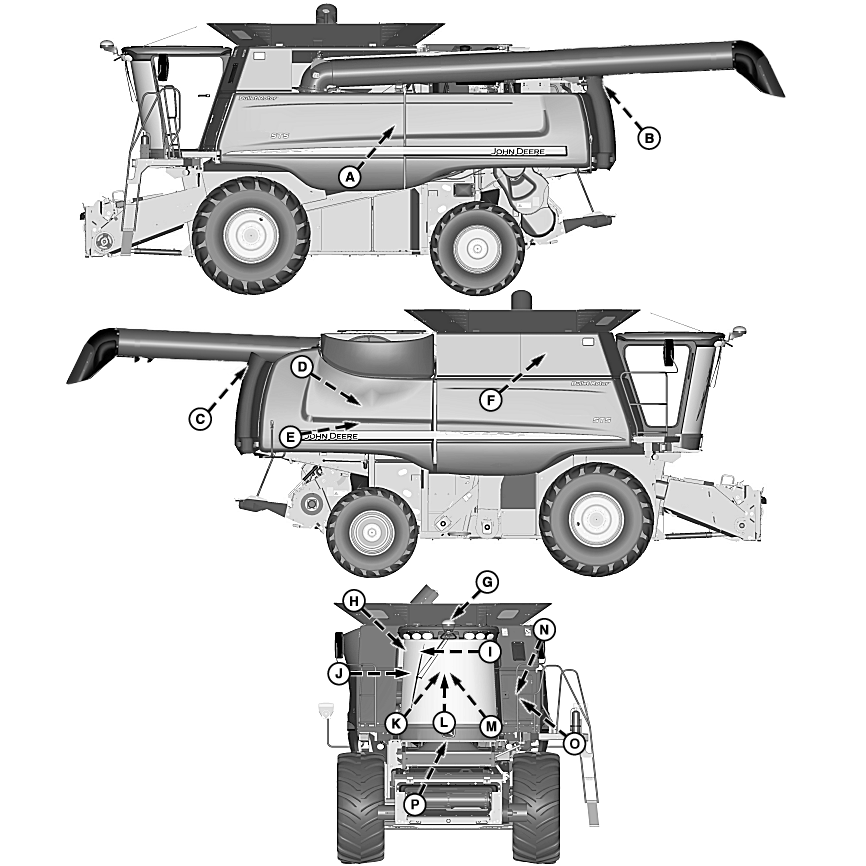

Controller and Power Module Locations

CQ280456-UN-08JUL08

A - Left Control Unit 2 (LC2)

B - Vehicle Control Unit (VCM) (Optional)

C - Engine Control Unit (ECU)

D - Right Control Unit (RCU)

E - Right Control Power Module (RPM)

F - Moisture Sensor (HMM)

G - GreenStar Position Receiver (Optional)

H - Cornerpost Display Unit (CDU)

I - GreenStar Display (GS2) (Optional)

J - Armrest Display Unit (ADU)

K - Cab Control Unit (CAB)

L - Cab Power Module (CPM)

M - Harvest Smart Feed Rate Controller (SFC) (Optional)

N - Left Control Unit 1 (LC1)

O - Left Power Module 1 (LPM1)

P - AutoTrac Controller (SSU) (Optional)
