Informational Display Warnings

NOTE:

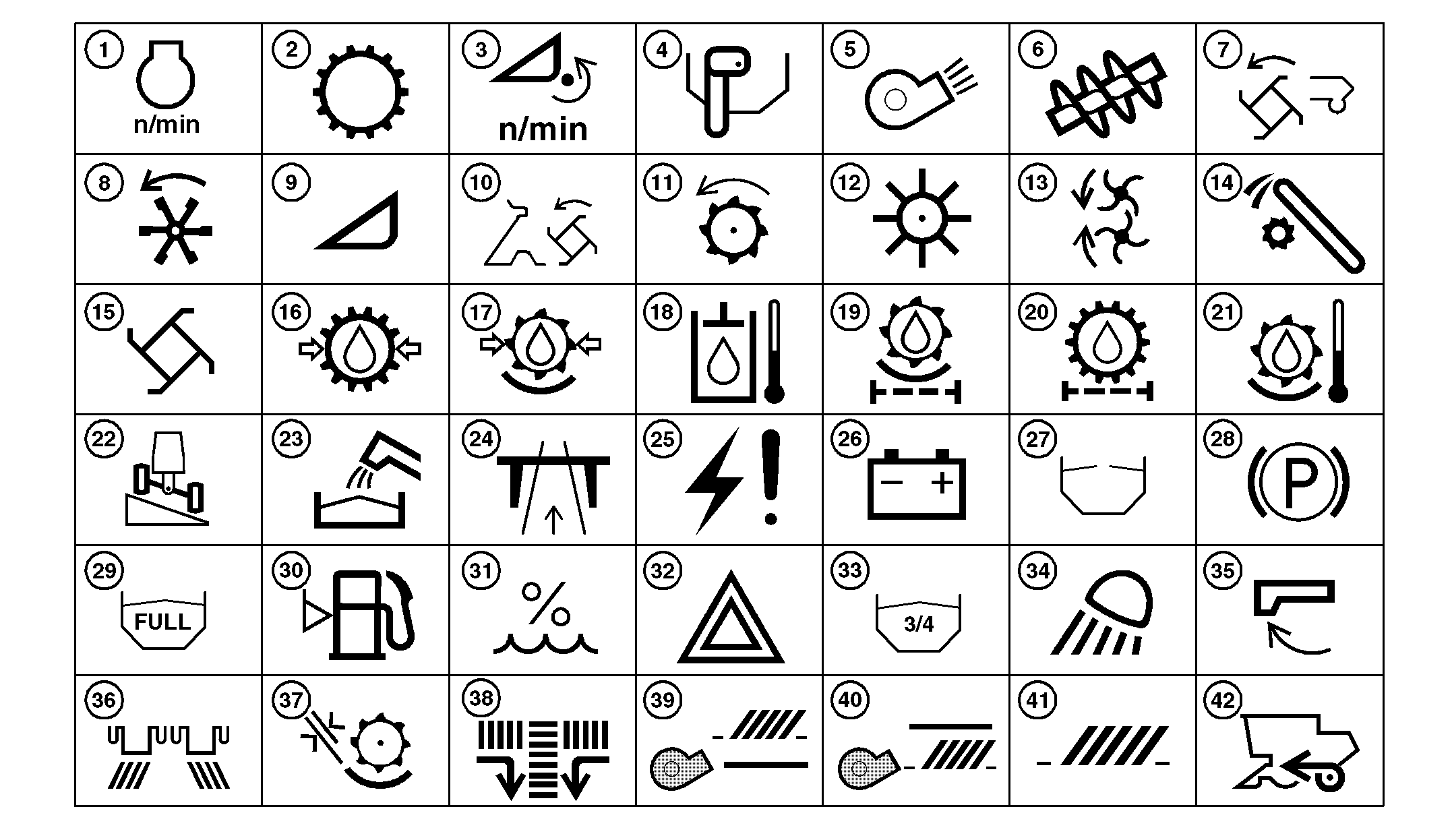

H90896-UN-28FEB08

Non Alarm Screens:
Screen Name	Severity Icon Color	Repeat Rate	Machine Information/Solution
Start-up Splash Screen	None	None	Displays when machine is first started.
Setpoint Adjust Screen	None	None	Allows operator to adjust various machine settings.
Service Hours Screen	Gray	None	Displays every 50 hours to alert operator to service machine.
Engine Preheat Screen	Gray	None	Displays when glow plugs are activated and gives countdown to when machine can be started.
Folding Unloading Auger Screen	Gray	None	Alerts operator to position of power folding auger.

Diagnostic Trouble Codes Screen:
Alarm Name	Severity Icon Color	Repeat Rate	Machine Information/Solution
Stop	Red	Continuous	Alerts operator to stop engine at once and correct problem.
Service Warning	Yellow	60 Minutes	Alerts operator to service or correct problems. Stop engine as required.
Information	Gray	No Repeat	Alerts operator to be aware of condition.

Low Speed Alarms:
Icon Reference Number	Alarm Name	Severity Icon Color	Repeat Rate	Machine Information/Solution
1	Low Engine Speed	Red	Continuous	Alerts operator that engine speed has slowed due to harvesting conditions. Reduce harvesting speed to reduce engine load. If message still displays, see your John Deere dealer.
2	Feeder House Speed Zero	Yellow	60 Minutes	Alerts operator that no movement is detected for feeder house drives. Stop engine, inspect drives and speed sensor. Engage separator and header switches. If message still displays, see your John Deere dealer.
3	Feeder House Speed Zero	Yellow	60 Minutes	Alerts operator that no movement is detected for backshaft. Stop engine, inspect drives and speed sensor. Engage separator and header switches. If message still displays, see your John Deere dealer.
9	Pickup Belt Speed Zero	Yellow	60 Minutes	Alerts operator that no movement is detected for belt pickup. Stop engine, inspect drives and speed sensor. Engage separator and header switches. If message still displays, see your John Deere dealer.
4	Clean Grain Elevator Speed Zero	Yellow	10 Minutes	Alerts operator that clean grain elevator speed is less than 20 rpm. Stop engine, inspect drives and speed sensor. Engage separator and header switches. If message still displays, see your John Deere dealer.
5	Cleaning Fan Speed Zero	Yellow	10 Minutes	Alerts operator that cleaning fan speed is less than 20 rpm. Stop engine, inspect drives and speed sensor. Engage separator and header switches. If message still displays, see your John Deere dealer.
6	Conveying Auger Speed Zero	Yellow	10 Minutes	Alerts operator that conveyor auger speed is less than 20 rpm. Stop engine, inspect drives and speed sensor. Engage separator and header switches. If message still displays, see your John Deere dealer.
7	Discharge Beater Speed Zero	Yellow	10 Minutes	Alerts operator that discharge beater speed is less than 20 rpm. Stop engine, inspect drives and speed sensor. Engage separator and header switches. If message still displays, see your John Deere dealer.
38	Draper Speed Zero	Yellow	60 Minutes	Alerts operator that draper speed is less than 20 rpm. Stop engine, inspect drives and speed sensor. Engage separator and header switches. If message still displays, see your John Deere dealer.
10	Feed Accelerator Speed Zero	Yellow	10 Minutes	Alerts operator that feed accelerator speed is less than 20 rpm. Stop engine, inspect drives and speed sensor. Engage separator and header switches. If message still displays, see your John Deere dealer.
8	Reel Speed Zero	Yellow	60 Minutes	Alerts operator that reel speed is less than 20 rpm. Stop engine, inspect drives and speed sensor. Engage separator and header switches. If message still displays, see your John Deere dealer.
9	Corn Head Speed Zero	Yellow	60 Minutes	Alerts operator that chopping corn head speed is less than 20 rpm. Stop engine, inspect drives and speed sensor. Engage separator and header switches. If message still displays, see your John Deere dealer.
11	Separator Speed Zero	Yellow	10 Minutes	Alerts operator that separator speed is less than 20 rpm. Stop engine, inspect drives and speed sensor. Engage separator and header switches. If message still displays, see your John Deere dealer.
12	Straw Chopper Speed Zero	Yellow	10 Minutes	Alerts operator that straw chopper speed is less than 20 rpm. Stop engine, inspect drives and speed sensor. Engage separator and header switches. If message still displays, see your John Deere dealer.
13	Spreader Speed Zero	Yellow	10 Minutes	Alerts operator that spreader speed is less than 20 rpm. Stop engine, inspect drives and speed sensor. Engage separator and header switches. If message still displays, see your John Deere dealer.
14	Tailings Elevator Speed Zero	Yellow	10 Minutes	Alerts operator that tailings elevator speed is less than 20 rpm. Stop engine, inspect drives and speed sensor. Engage separator and header switches. If message still displays, see your John Deere dealer.
11	Threshing Speed Zero	Yellow	10 Minutes	Alerts operator that threshing speed is less than 20 rpm. Stop engine, inspect drives and speed sensor. Engage separator and header switches. If message still displays, see your John Deere dealer.
2	Feeder House Speed Low	Yellow	30 Seconds	Alerts operator that feeder house drive speed has slowed to 85% of normal speed. Stop engine, check for plugging, inspect drives and reduce harvesting speed. If message still displays, see your John Deere dealer.
4	Clean Grain Elevator Speed Low	Yellow	30 Seconds	Alerts operator that clean grain elevator speed has slowed to 85% of normal speed. Stop engine, check for plugging, inspect drives and reduce harvesting speed. If message still displays, see your John Deere dealer.
5	Cleaning Fan Speed Low	Yellow	30 Seconds	Alerts operator that cleaning fan speed has slowed to 85% of normal speed. Stop engine, check for plugging, inspect drives and reduce harvesting speed. If message still displays, see your John Deere dealer.
6	Conveying Auger Speed Low	Yellow	30 Seconds	Alerts operator that conveyor auger speed has slowed to 85% of normal speed. Stop engine, check for plugging, inspect drives and reduce harvesting speed. If message still displays, see your John Deere dealer.
7	Discharge Beater Speed Low	Yellow	30 Seconds	Alerts operator that discharge beater speed has slowed to 85% of normal speed. Stop engine, check for plugging, inspect drives and reduce harvesting speed. If message still displays, see your John Deere dealer.
10	Feed Accelerator Speed Low	Yellow	30 Seconds	Alerts operator that feed accelerator speed has slowed to 85% of normal speed. Stop engine, check for plugging, inspect drives and reduce harvesting speed. If message still displays, see your John Deere dealer.
11	Separator Speed Low	Yellow	30 Seconds	Alerts operator that separator speed has slowed to 85% of normal speed. Stop engine, check for plugging, inspect drives and reduce harvesting speed. If message still displays, see your John Deere dealer.
12	Straw Chopper Speed Low	Yellow	30 Seconds	Alerts operator that straw chopper speed has slowed to 85% of normal speed. Stop engine, check for plugging, inspect drives and reduce harvesting speed. If message still displays, see your John Deere dealer.
13	Spreader Speed Low	Yellow	30 Seconds	Alerts operator that spreader speed has slowed to 85% of normal speed. Stop engine, check for plugging, inspect drives and reduce harvesting speed. If message still displays, see your John Deere dealer.
14	Tailings Elevator Speed Low	Yellow	30 Seconds	Alerts operator that tailings elevator speed has slowed to 85% of normal speed. Stop engine, check for plugging, inspect drives and reduce harvesting speed. If message still displays, see your John Deere dealer.
11	Threshing Speed Low	Yellow	30 Seconds	Alerts operator that threshing speed has slowed to 85% of normal speed. Stop engine, check for plugging, inspect drives and reduce harvesting speed. If message still displays, see your John Deere dealer.
12	Chopper in High Speed Range	Gray	No Repeat	Alerts operator that chopper is in high speed range and detects that a chopping corn head or regular corn head is attached. Stop engine, raise chopper and move belt to inside grooves on both sheaves for slow speed. If message still displays, see your John Deere dealer.

Pressures and Temperatures:
Icon Reference Number	Alarm Name	Severity Icon Color	Repeat Rate	Machine Information/Solution
16	Hydrostatic Charge Pressure Low	Red	Continuous	Alerts operator that abnormal pressure is detected in hydrostatic drive. Stop engine and check oil level in hydraulic reservoir. Add oil as needed or change filter. If message still displays, see your John Deere dealer.
17	Main Gearcase Pressure Low	Red	Continuous	Alerts operator that abnormal pressure is detected in main gearcase. Stop engine and check oil level in hydraulic reservoir. Add oil as needed or change filter. If message still displays, see your John Deere dealer.
16	Brake Accumulator Charge Pressure Low	Red	Continuous	Alerts operator that service brakes may not have full braking capability. If alarm occurs at engine start-up, allow engine to idle for 30 seconds and shut OFF. Restart engine and see if problem persists when attempting to move machine. If stop alarm remains displayed, stop engine and check hydraulic reservoir oil level, hydraulic hoses for leaks, and switch harness connection under cab. If message still displays or if no problems are observed, see your John Deere dealer. If alarm occurs while driving, speed is reduced to a max of 5 km/h (3 mph) after 10 seconds. Stop machine in a safe location and perform start-up diagnostics as previously described.
16	Feeder House Drive Pressure Low	Red	Continuous	Alerts operator that abnormal pressure is detected in transmission while operating CommandTouch multi-speed feeder house drive. Stop engine and check main gearcase oil level. Add oil as needed or change filter. If message still displays, see your John Deere dealer.
18	Hydraulic Oil Temperature High	Yellow	10 Minutes	Alerts operator that abnormal temperature is detected in hydraulic system. Stop engine and check oil level in hydraulic reservoir and clean oil cooler. If message still displays, see your John Deere dealer.
19	Main Gearcase Filter Restricted	Yellow	10 Minutes	Alerts operator that filter restriction is detected. Stop engine and change main gearcase filter. If message still displays, see your John Deere dealer.
20	Feeder House Drive Filter Restricted	Yellow	10 Minutes	Alerts operator that filter restriction is detected while operating CommandTouch multi-speed feeder house drive. Stop engine and change transmission filter. If message still displays, see your John Deere dealer.
21	Main Gearcase Oil Temperature High	Yellow	10 Minutes	Alerts operator that abnormal temperature is detected in main gearcase. Stop engine and check oil level in hydraulic reservoir and clean oil cooler. If message still displays, see your John Deere dealer.
18	Transmission Oil Temperature High	Yellow	10 Minutes	Alerts operator that abnormal temperature is detected in transmission. Maximum speed is reduced. Slow or stop machine temporarily for oil to cool. Check oil cooler. If message still displays, see your John Deere dealer.

Machine Safety Interlock System:
Icon Reference Number	Alarm Name	Severity Icon Color	Repeat Rate	Machine Information/Solution
2	Propulsion System Disabled - Transmission Supply Pressure Low	Red	Continuous	Alerts operator to low supply or lube oil pressure. Stop machine and check main engine gearcase oil level, harness, and sensor connection at transmission. If message still displays, see your John Deere dealer.
2	Propulsion System Disabled - Clutch Solenoid Current Low	Red	Continuous	Alerts operator to a possible bad electrical connection or solenoid valve. Inspect top harness and solenoid connection at transmission valve. If message still displays, see your John Deere dealer.
2	Propulsion System Disabled - Park Brake Pressure Detected When Park Brake Engaged	Red	Continuous	Alerts operator that pressure is detected in park brake when there should not be pressure. If message still displays, see your John Deere dealer.
2	Propulsion System Disabled - Four Wheel Drive Will Not Disengage	Red	Continuous	Alerts operator that an electrical or hydraulic issue is preventing four-wheel drive to disengage. Stop engine for 15 seconds and restart. If message still displays, see your John Deere dealer.
2	Propulsion System Disabled - Forward Pressure Detected When Hydrostatic Pump Commanded To Neutral	Red	Continuous	Alerts operator that an electrical or hydraulic issue is keeping hydrostatic pump forward pressure from reducing to an expected level. Stop engine for 15 seconds and restart. If stop alarm message still displays, see your John Deere dealer.
2	Propulsion System Disabled - Reverse Pressure Detected When Hydrostatic Pump Commanded To Neutral	Red	Continuous	Alerts operator that an electrical or hydraulic issue is keeping hydrostatic pump reverse pressure from reducing to an expected level. Stop engine for 15 seconds and restart. If stop alarm message still displays, see your John Deere dealer.
2	Propulsion System Disabled - Differential Pressure Forward/Reverse Detected When Hydrostatic Pump Commanded To Neutral	Red	Continuous	Alerts operator that an electrical or hydraulic issue is keeping hydrostatic pump differential pressure from reducing to an expected level. Stop engine for 15 seconds and restart. If stop alarm message still displays, see your John Deere dealer.
2	Propulsion System Disabled - Motor Speed Detected When Hydrostatic Pump Commanded To Neutral	Red	Continuous	Alerts operator that an electrical or hydraulic issue is causing a non-zero front motor speed at neutral. Stop engine for 15 seconds and restart. If stop alarm message still displays, see your John Deere dealer.
2	Propulsion System Disabled - Reverse Pressure Detected When Hydrostatic Pump Commanded To Forward	Red	Continuous	Alerts operator that an electrical or hydraulic issue is causing reverse pressure to be detected when commanded forward. Stop engine for 15 seconds and inspect pump harness for proper connections. Restart engine and if message still displays, see your John Deere dealer.
2	Propulsion System Disabled - Forward Pressure Detected When Hydrostatic Pump Commanded To Reverse	Red	Continuous	Alerts operator that an electrical or hydraulic issue is causing forward pressure to be detected when commanded reverse. Stop engine for 15 seconds and inspect pump harness for proper connections. Restart engine and if message still displays, see your John Deere dealer.
2	Propulsion System Disabled - Hydrostatic Pump Charge Pressure Low	Red	Continuous	Alerts operator that an electrical or hydraulic issue is present. Lower feeder house, shut OFF engine and verify hydraulic reservoir oil level. Inspect hydrostatic pump harness for loose connections. Restart engine and if message still displays, see your John Deere dealer.
2	Propulsion System Disabled - No Forward Pressure Detected When Hydrostatic Pump Commanded To Forward	Red	Continuous	Alerts operator that an electrical or hydraulic issue is present. Lower feeder house, shut OFF engine and verify hydraulic reservoir oil level. Inspect hydrostatic pump harness for loose connections. Restart engine and if message still displays, see your John Deere dealer.
2	Propulsion System Disabled - No Reverse Pressure Detected When Hydrostatic Pump Commanded To Reverse	Red	Continuous	Alerts operator that an electrical or hydraulic issue is present. Lower feeder house, stop engine and verify hydraulic reservoir oil level. Inspect hydrostatic pump harness for loose connections. Restart engine and if message still displays, see your John Deere dealer.
2	Propulsion System Disabled - Handle Position Input Not Neutral and/or Needs Calibration	Red	Continuous	Alerts operator that handle switch was not activated with an appropriate handle position value, or handle is not calibrated. If handle is calibrated, put handle in neutral position and restart. If handle calibration is not complete or problem persists, see your John Deere dealer.
2	Propulsion System Disabled - System Is Not Responding As Commanded	Red	Continuous	Alerts operator that an electrical or hydraulic issue occurred with hydrostatic pump. Stop engine for 15 seconds and restart. If stop alarm message still displays, see your John Deere dealer.
1	Engine Start Failure - Header Engaged	Yellow	No Repeat	Alerts operator that header engage switch is ON when trying to start machine. Turn OFF header engage switch. If message still displays, see your John Deere dealer.
1	Engine Start Failure - Separator Engaged	Yellow	No Repeat	Alerts operator that separator engage switch is ON when trying to start machine. Turn OFF separator engage switch. If message still displays, see your John Deere dealer.
1	Engine Start Failure - Unloading Auger Engaged	Yellow	No Repeat	Alerts operator that unloading auger drive switch is ON when trying to start machine. Turn OFF unloading auger engage switch. If message still displays, see your John Deere dealer.
1	Engine Start Failure - Engine Is Running	Yellow	No Repeat	Alerts operator that engine is already running when trying to start machine.
1	Engine Start Failure - Multifunction Handle Out Of Neutral	Yellow	No Repeat	Alerts operator that hydrostatic handle is out of neutral position when trying to start machine. Move hydrostatic handle into neutral position and start machine. If message still displays, see your John Deere dealer.
9	Header Engage Failure - Road Transport Mode Active	Yellow	No Repeat	Alerts operator that road transport disconnect switch is ON when trying to engage header. Turn road transport disconnect switch OFF and engage header. If message still displays, see your John Deere dealer.
9	Header Engage Failure - Quick Stop Pressed	Yellow	No Repeat	Alerts operator that quick stop switch is ON when trying to engage header. Do not press quick stop switch while trying to engage header. If message still displays, see your John Deere dealer.
9	Header Engage Failure - Operator Out Of Seat	Yellow	No Repeat	Alerts operator that they are not seated when trying to engage header. Operator must be seated to engage header. If message still displays, see your John Deere dealer.
9	Header Disengaged - Quick Stop Pressed	Yellow	No Repeat	Alerts operator that header was disengaged with quick stop switch. Turn header engage switch OFF to reset and ON again to engage header. If message still displays, see your John Deere dealer.
9	Header Disengaged - Operator Out Of Seat	Yellow	No Repeat	Alerts operator that header was disengaged due to operator not seated. Operator must be seated. Turn header engage switch OFF to reset and ON again to engage header. If message still displays, see your John Deere dealer.
22	HILLMASTER Tilt Failure - Park Brake Is ON	Yellow	No Repeat	Alerts operator that park brake is engaged and HILLMASTER cannot tilt. Disengage park brake for HILLMASTER to tilt. If message still displays, see your John Deere dealer.
1	Harvesting At Low Engine Speed	Yellow	No Repeat	Alerts operator that machine is operating at low speed while harvesting. Machine must be in high engine speed during normal harvesting. If message still displays, see your John Deere dealer.
11	Separator Engage Failure - Operator Out Of Seat	Yellow	No Repeat	Alerts operator that they are not seated when trying to engage separator. Operator must be seated to engage separator. If message still displays, see your John Deere dealer.
11	Separator Engage Failure - Road Transport Mode Active	Yellow	No Repeat	Alerts operator that road transport disconnect switch is ON when trying to engage separator. Turn road transport disconnect switch OFF and engage separator. If message still displays, see your John Deere dealer.
11	Separator Engage Failure - Feeder House Drive Problem	Yellow	No Repeat	Alerts operator that separator failed to engage due to a problem in the feeder house. A message appears indicating what the problem is with the feeder house. Use message to correct problem and if message still displays, see your John Deere dealer.
11	Separator Disengage Failure - Feeder House Drive Problem	Yellow	No Repeat	Alerts operator that separator failed to disengage due to a problem in the feeder house. A message appears indicating what the problem is with the feeder house. Use message to correct problem and if message still displays, see your John Deere dealer.
11	Separator Engage Failure - Self-Leveling Shoe Problem	Yellow	No Repeat	Alerts operator that separator failed to engage due to a problem in the self-leveling shoe. Possible conditions that cause codes to appear are: Sensor out of range Self-leveling shoe not calibrated Possible bay collisions will not appear on display. Check for codes, calibrate, and/or inspect cleaning shoe area. If codes still appear or calibration does not resolve problem, see your John Deere dealer.
23	Unloading System Engage Failure - Road Transport Mode Active	Yellow	No Repeat	Alerts operator that road transport disconnect switch is ON when trying to engage unloading auger system. Turn road transport disconnect switch OFF and turn unloading auger drive switch ON. If message still displays, see your John Deere dealer.
23	Unloading System Engage Failure - Operator Out Of Seat	Yellow	No Repeat	Alerts operator that unloading auger drive system failed to engage due to operator not seated. Operator must be seated. Turn unloading auger drive switch ON to engage system. If message still displays, see your John Deere dealer.
23	Unloading System Engage Failure - Quick Stop Pressed	Yellow	No Repeat	Alerts operator that unloading auger system was disengaged due to quick stop switch being pressed. Turn unloading auger drive switch ON again to engage system. If message still displays, see your John Deere dealer.
23	Unloading System Engage Failure - Unloading Auger Partially Folded	Yellow	No Repeat	Alerts operator that unloading auger drive system was disengaged due to power folding auger not being fully unfolded. Press folding auger switch to unfold auger and turn unloading auger drive switch ON to engage system. If message still displays, see your John Deere dealer.
23	Unloading System Disengaged - Quick Stop Pressed	Yellow	No Repeat	Alerts operator that quick stop switch is pressed while trying to engage unloading auger drive system. Do not press quick stop switch while trying to engage unloading auger drive system. If message still displays, see your John Deere dealer.
23	Unloading System Disengaged - Operator Out Of Seat	Yellow	No Repeat	Alerts operator that unloading auger drive system was disengaged due to operator not seated. Operator must be seated. Turn unloading auger drive switch ON to engage system. If message still displays, see your John Deere dealer.
23	Unloading System Disengaged - Unloading Auger Not Fully Unfolded	Yellow	No Repeat	Alerts operator that unloading auger drive system was disengaged due to power folding auger not being fully unfolded. Press folding auger switch to unfold auger and turn unloading auger drive switch ON to engage system. If message still displays, see your John Deere dealer.
23	Unloading System Disengaged - Unloading Auger Not Fully Swung Out	Yellow	No Repeat	Alerts operator that unloading auger drive system was disengaged due to power folding auger not being swung out from transport or storage position. Press folding auger switch to unfold auger and turn unloading auger drive switch ON to engage system. If message still displays, see your John Deere dealer.
12	Chopper Speed Detected When Chopper Raised	Yellow	30 Seconds	Alerts operator that chopper is in raised position and speed is detected. Shut OFF engine, verify that belt is in storage position, and inspect speed sensor. If message still displays, see your John Deere dealer.
24	Non-Ideal Transport State Entered - Unloading Auger Swung Out	Yellow	10 Minutes	Alerts operator that unloading auger is swung out when transporting machine. Swing unloading auger to transport position. If message still displays, see your John Deere dealer.
24	Non-Ideal Transport State Entered - Unloading Auger Not Fully Folded	Yellow	10 Minutes	Alerts operator that power folding auger is not folded when transporting machine. Swing power folding auger to transport position. If message still displays, see your John Deere dealer.
24	Non-Ideal Transport State Entered - Rear Discharge Lights ON	Yellow	10 Minutes	Alerts operator that rear discharge lights are ON when transporting machine. Turn rear discharge lights OFF. If message still displays, see your John Deere dealer.
24	Non-Ideal Transport State Entered - Stubble Lights ON	Yellow	10 Minutes	Alerts operator that stubble lights are ON when transporting machine. Turn stubble lights OFF. If message still displays, see your John Deere dealer.
24	Road Transport Mode Not Activated - Separator Is Engaged	Yellow	No Repeat	Alerts operator that separator switch is ON when trying to engage road transport mode. Turn separator engage switch OFF to allow road transport disconnect switch to be engaged. If message still displays, see your John Deere dealer.
12	Chopper Speed Non-Zero When Chopper Is Not Installed	Gray	Not Repeat	Alerts operator that chopper option is turned OFF and speed is still detected. If message still displays, see your John Deere dealer.
24	HILLMASTER Disabled In Road Transport Mode	Gray	No Repeat	Alerts operator that road transport disconnect switch is ON and operator is trying to turn HILLMASTER ON or OFF. Turn road transport disconnect switch OFF to engage or disengage HILLMASTER. If message still displays, see your John Deere dealer.
24	Unloading Auger Swing Disabled In Road Transport Mode	Gray	No Repeat	Alerts operator that road transport disconnect switch is ON and operator is trying to swing unloading auger in or out. Turn road transport disconnect switch OFF to swing unloading auger in or out. If message still displays, see your John Deere dealer.
24	Unloading Auger Fold Disabled In Road Transport Mode	Gray	No Repeat	Alerts operator that road transport disconnect switch is ON and operator is trying to swing power folding unloading auger in or out. Turn road transport disconnect switch OFF to swing power folding unloading auger in or out. If message still displays, see your John Deere dealer.
24	Grain Tank Covers Adjust Disabled In Road Transport Mode	Gray	No Repeat	Alerts operator that road transport disconnect switch is ON and operator is trying to raise or lower grain tank cover. Turn road transport disconnect switch OFF to raise or lower grain tank covers. If message still displays, see your John Deere dealer.
24	Header Adjust Functions Disabled In Road Transport Mode	Yellow	No Repeat	Alerts operator that road transport disconnect switch is ON and operator is trying to raise/lower or tilt header. Turn road transport disconnect switch OFF to raise/lower or tilt header. If message still displays, see your John Deere dealer.
24	Chopper Vane Angle Adjust Disabled In Road Transport Mode	Yellow	No Repeat	Alerts operator that road transport disconnect switch is ON and operator is trying to adjust chopper vane angle. Turn road transport disconnect switch OFF to adjust chopper vane angle. If message still displays, see your John Deere dealer.
24	Header Functions Disabled In Road Transport Mode	Gray	No Repeat	Alerts operator that road transport disconnect switch is ON and operator is trying to adjust reel raise/lower, reel fore/aft, and deck plate spacing. Turn road transport disconnect switch OFF to adjust header hydraulics. If message still displays, see your John Deere dealer.

Machine System Status:
Icon Reference Number	Alarm Name	Severity Icon Color	Repeat Rate	Machine Information/Solution
2	Ground Drive Deactivated - Operator Out Of Seat	Gray	No Repeat	Alerts operator that they are not seated and machine slows to a stop. Operator must be seated for machine to move. Move multifunction control handle to neutral and restart engine. If message still displays, see your John Deere dealer.
42	Four Wheel Drive Not Engaged - Vehicle Speed Too High	Yellow	No Repeat	Alerts operator that ground speed to too fast to engage the four-wheel drive system. Slow machine ground speed and press desired four-wheel drive switch to enable system. If system fails to engage, check electrical connectors at wheel motors and if message still displays, see your John Deere dealer.
25	Alternator Not Charging	Yellow	10 Minutes	Alerts operator that alternator is not charging electrical system, see your John Deere dealer.
25	Alternator Regulator Failed	Yellow	10 Minutes	Alerts operator that alternator regulator failed, see your John Deere dealer.
26	Battery Voltage Low	Red	Continuous	Alerts operator that battery voltage is low. Check fluid level in each cell, clean battery posts and cable, inspect battery cables, inspect alternator belt and charge batteries. If message still displays, see your John Deere dealer.
27	Grain Tank Covers Out Of Position	Yellow	30 Seconds	Alerts operator that grain tank covers are open or separator is engaged with grain tank covers closed. Open grain tank covers when separator is engaged. Close grain tank covers when operating near power lines or before transporting machine on roadway. If message still displays, see your John Deere dealer.
28	Park Brake Engaged	Yellow	10 Seconds	Alerts operator that park brake is engaged while trying to move multifunction control handle out of neutral position. Release park brake and move multifunction control handle. If message still displays, see your John Deere dealer.
24	Road Transport Mode Activated - Press And Hold Switch To Deactivate	Yellow	No Repeat	Alerts operator that road transport disconnect switch is turned ON. Press and hold road transport disconnect switch for two seconds to turn OFF.
24	Road Transport Mode Deactivated	Yellow	No Repeat	Alerts operator that road transport disconnect switch is turned OFF.
41	Self-Leveling Shoe Disabled	Yellow	No Repeat	Alerts operator that separator is engaged, but self-leveling shoe is not enabled. Press automatic self-leveling shoe switch to enable system.
14	Tailings Full	Yellow	30 Seconds	Alerts operator that tailings elevator is full. Stop engine, check for plugging, inspect drives, adjust chaffer and sieve and reduce harvesting speed. If message still displays, see your John Deere dealer.
29	Grain Tank Full	Yellow	30 Seconds	Alerts operator that grain tank is full. Unload grain tank to remove grain. Check grain tank full sensor indicator in grain tank for movement and clean if necessary. If message still displays, see your John Deere dealer.
22	Maximum Tilt	Yellow	No Repeat	Alerts operator that HILLMASTER has reached maximum tilt position. Max tilt remains ON until machine senses it is operating on slopes less than 15%. If message still displays, see your John Deere dealer.
30	Fuel Level Low	Yellow	10 Minutes	Alerts operator that 11% of fuel remains in fuel tank (approximately one hour of operation). Add fuel as needed. If message still displays, see your John Deere dealer.
31	Grain Moisture Low	Yellow	10 Minutes	Alerts operator when moisture sensor value drops below operator preset value. If message still displays, see your John Deere dealer.
31	Grain Moisture High	Yellow	10 Minutes	Alerts operator when moisture sensor value is above operator preset value. If message still displays, see your John Deere dealer.
31	Processing Grain With Recording OFF	Yellow	10 Minutes	Alerts operator when moisture sensor recording is OFF, but flow is detected by mass flow sensor. Turn moisture sensor recording ON if desired. If message still displays, see your John Deere dealer.
23	Unloading Auger Engaged	Yellow	30 Seconds	Alerts operator that unloading auger drive is engaged. If message still displays, see your John Deere dealer.
32	Left Amber Flasher Light Missing Or Burnt Out	Gray	No Repeat	Alerts operator when left amber flasher is missing or is burnt out. Check and replace bulb as needed. If message still displays, see your John Deere dealer.
32	Right Amber Flasher Light Missing Or Burnt Out	Gray	No Repeat	Alerts operator when right amber flasher is missing or is burnt out. Check and replace bulb as needed. If message still displays, see your John Deere dealer.
34	Engine Service Lights ON	Gray	60 Minutes	Alerts operator that engine service lights are ON. Turn engine service lights OFF. If message still displays, see your John Deere dealer.
33	Grain Tank 3/4 Full	Gray	No Repeat	Alerts operator that grain tank is 3/4 full. Unload grain tank or continue harvesting until grain tank full is displayed. Check grain tank 3/4 full sensor indicator in grain tank for movement and clean if necessary. If message still displays, see your John Deere dealer.
34	Gullwing Service Lights ON	Gray	60 Minutes	Alerts operator that gullwing service lights are ON. Turn gullwing service lights OFF. If message still displays, see your John Deere dealer.
34	Shoe Service Light Switch is ON - System Has Turned Lights OFF	Gray	60 Minutes	Alerts operator that shoe service lights are ON. Turn shoe service lights OFF. If message still displays, see your John Deere dealer.
35	Unloading Auger Swung Out	Gray	No Repeat	Alerts operator that unloading auger is swung out. Swing unloading auger back to storage position if desired. If message still displays, see your John Deere dealer.

Machine Setpoints:
Icon Reference Number	Alarm Name	Severity Icon Color	Repeat Rate	Machine Information/Solution
36	Chopper Vane Angle Setpoint Not Reached	Gray	No Repeat	Alerts operator that chopper vane angle setpoint was not reached. Stop engine and check chopper vanes for obstructions. If needed recalibrate chopper vanes. If message still displays, see your John Deere dealer.
5	Cleaning Fan Speed Setpoint Not Reached	Gray	No Repeat	Alerts operator that cleaning fan speed setpoint was not reached. Stop engine and check cleaning fan for obstructions and inspect drives. If message still displays, see your John Deere dealer.
39	Chaffer Opening Setpoint Not Reached	Gray	No Repeat	Alerts operator that chaffer opening setpoint was not reached. Stop engine and check chaffer for obstructions. If needed recalibrate chaffer. If message still displays, see your John Deere dealer.
40	Sieve Opening Setpoint Not Reached	Gray	No Repeat	Alerts operator that sieve opening setpoint was not reached. Stop engine and check sieve for obstructions. If needed recalibrate sieve. If message still displays, see your John Deere dealer.
37	Threshing Clearance Setpoint Not Reached	Gray	No Repeat	Alerts operator that threshing clearance setpoint was not reached. Stop engine and check separator for obstructions. If needed recalibrate threshing clearance. If message still displays, see your John Deere dealer.
11	Threshing Speed Setpoint Not Reached	Gray	No Repeat	Alerts operator that threshing speed setpoint was not reached. Stop engine and check separator for obstructions and inspect drives. If message still displays, see your John Deere dealer.

Miscellaneous:
Icon Reference Number	Alarm Name	Severity Icon Color	Repeat Rate	Machine Information/Solution
31	Moisture Sensor Not Filling	Yellow	No Repeat	Alerts operator that moisture cell is not filling. Stop engine and check moisture sensor for obstructions. If message still displays, see your John Deere dealer.
31	Moisture Sampling Disabled - Plunger Retracted For Cleaning	Yellow	No Repeat	Alerts operator that moisture sensor plunger in diagnostic mode has been retracted. This allows moisture sensor to be inspected for obstructions and problems. Turn hey switch OFF to reset moisture sensor. If message still displays, see your John Deere dealer.
31	Moisture Sampling Not Updating - Inspect Plunger	Yellow	No Repeat	Alerts operator to inspect plunger. Stop engine and check moisture sensor plunger for problems. If message still displays, see your John Deere dealer.
31	Clean Moisture Sensor	Yellow	No Repeat	Alerts operator to clean moisture sensor. Stop engine and clean moisture sensor. If message still displays, see your John Deere dealer.
31	Moisture Sensor Low On Data Space - Clear Field And Crop Totals To Recover Storage Space	Yellow	No Repeat	Alerts operator that lack of space is available on moisture sensor. Save field data and clear fields after saving data. If message still displays, see your John Deere dealer.
