Air Compressor Switch (Black)

CQ282473
CQ282473-UN-03SEP08

CQ282508
CQ282508-UN-18SEP08

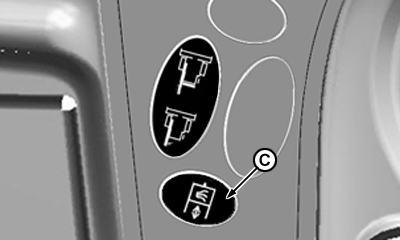

Air compressor switch (C) allows operator to turn on the combine air compressor that is located on the engine platform.

System Requirements:

  • Multifunctional control handle must be in neutral positon;
  • Park brake must be engaged;
  • Road Transport mode must be activated;
  • Engine speed must be in low idle.

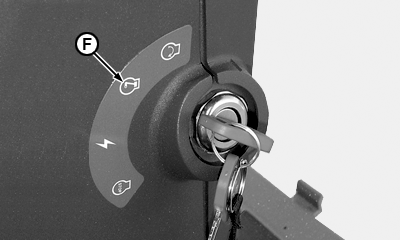

  • Starter Switch in Run position (F).

After carry out these requirements press Air compressor button (C) to activate the system.

GB52027,000064A-19-20080918
