Breaking-In Engine

The engine is ready for normal operation. However, extra care during the first 100 hours of operation results in more satisfactory long-term engine performance and life. DO NOT exceed 100 hours of operation with break-in oil.

This engine is factory filled with John Deere Engine Break-in Oil. Operate the engine at heavy loads with minimal idling during the break-in period.

If engine has significant operating time at idle, constant speeds, and/or light load usage, or makeup oil is required in the first 100 hour period, a longer break-in period may be required. In these situations, an additional 100 hour break-in period is recommended using a new change of John Deere Engine Break-in Oil and a new John Deere oil filter.

IMPORTANT: DO NOT add makeup oil until the oil level is BELOW the “ADD” mark on dipstick. John Deere Engine Break-in Oil (TY22041) should be used to make up any oil consumed during the break-in period.

DO NOT use PLUS-50™ Engine Oil during break-in period of a new engine or engine that has had a major overhaul. PLUS-50™ oil will not allow a new or overhauled engine to properly wear during this break-in period.

Check engine oil level more frequently during engine break-in period. If oil must be added during this period, John Deere Engine Break-In Oil is preferred.

IMPORTANT: DO NOT fill above the FULL mark. Oil levels anywhere within the cross hatch marks are considered in the acceptable operating range.

NOTE: Some increase in oil consumption may be expected when low viscosity oils are used. Check oil levels more frequently.

During first 20 hours, avoid prolonged periods of engine idling or sustained maximum load operation. If engine idles longer than 5 minutes, stop engine.

After first 100 hours maximum, change engine oil and replace engine oil filter. Fill crankcase with seasonal viscosity grade oil, (see Diesel Engine Oil in the Fuel And Lubricants section for oil recommendations).

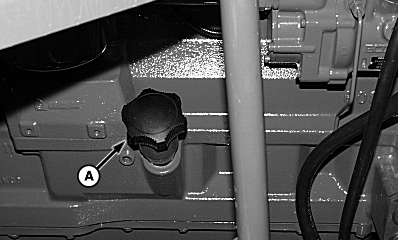

H67106-UN-09APR01

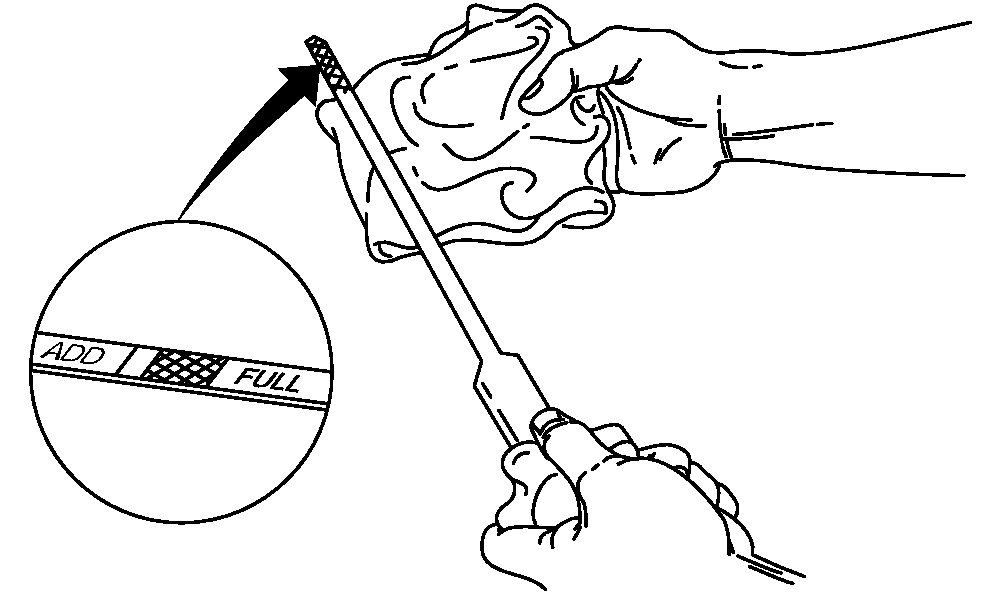

H86717-UN-19OCT06

A - Dipstick

NOTE: Verify that dipstick is screwed completely into housing before removing to check oil level.

Remove dipstick and check oil level. Oil level should be between “ADD” and top of cross-hatch area on dipstick. If oil level is below “ADD” mark, add oil as needed, (see Fuel And Lubricants for oil recommendations).

Watch for leaks. Do not operate engine with oil level below “ADD” mark.

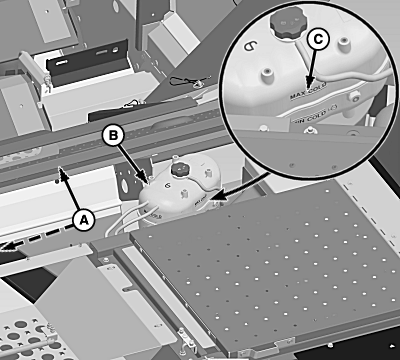

H91166-UN-17APR08

A - Engine Access Covers

B - Surge Tank

C - Max Cold Line
