Grain Tank/Engine Ladder

CAUTION: Shut OFF engine, set parking brake and remove key.

CQ282481
CQ282481-UN-15SEP08

H62225
H62225-UN-19JAN00

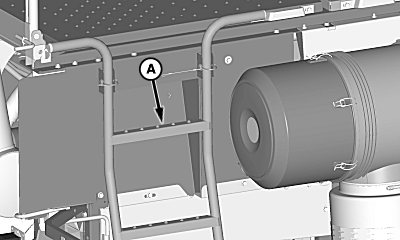

A - Ladder

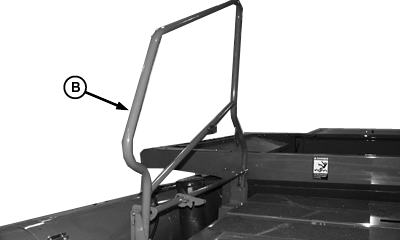

B - Handrail

Use ladder (A) to access grain tank.

Raise handrail (B) to up right position to lock into place

GB52027,000065E-19-20080915
