Drive Shafts Lubrication

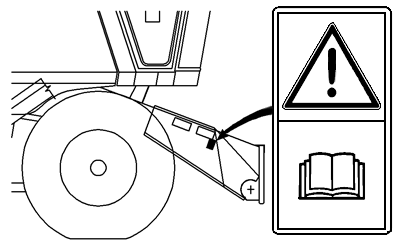

CQ282812-UN-22MAY09

Header must be parallel to top of feeder house when lubricating drive shafts.

For additional information about Service Intervals and Lubrication refer to “Lubrication and Maintenance” Section in this manual.
