User Calibration Procedures

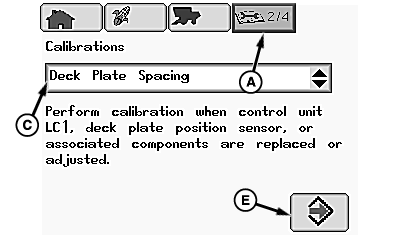

H91887
H91887-UN-28MAY08

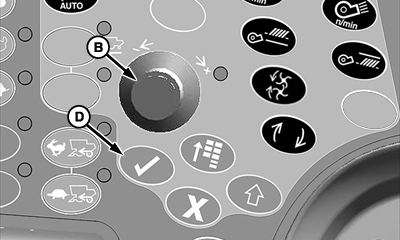

H86977
H86977-UN-20NOV06

A - Diagnostics and Calibration Icon

B - Selection Dial

C - Calibrations Menu

D - Confirm Switch

E - Calibration Icon

From diagnostics and calibration icon (A), rotate selection dial (B) until calibrations menu (C) is highlighted.

Press confirm switch (D) and rotate selection dial until desired calibration is highlighted.

Press confirm switch and rotate selection dial until calibration icon (E) is highlighted.

Press confirm switch and follow instructions shown on CommandCenter display to calibrate.

Repeat as needed for other calibrations.

OUO6075,000002A-19-20080528
