Cleaning Out Machine (Annual and Specialty Crops)

CAUTION:

H74963
H74963-UN-28JAN03

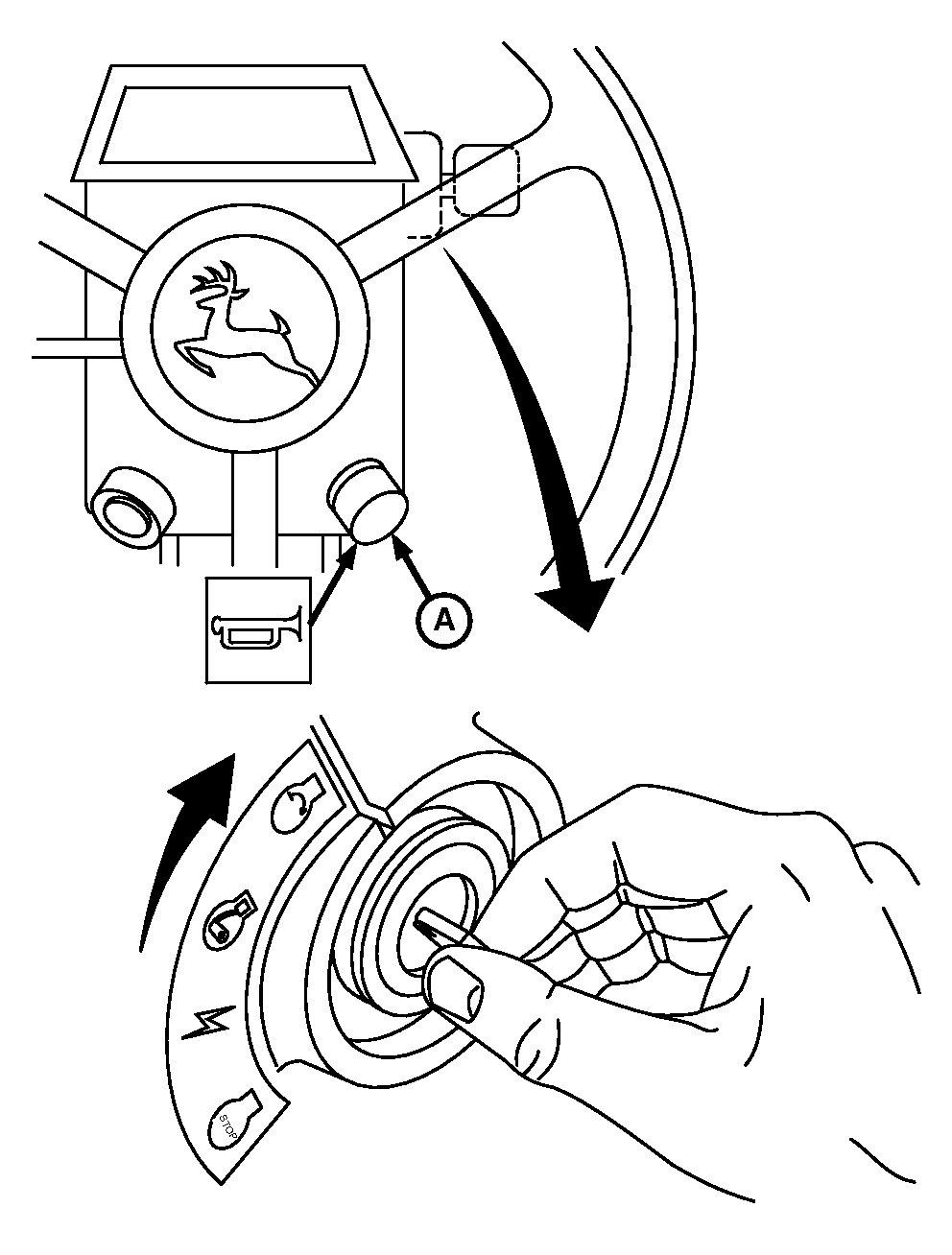

A - Horn

To prevent injury, never clean machine with engine running and separator engaged. Shut OFF engine, set parking brake and remove key.

The following instructions are recommended when cleaning out machine for certified seed crops or when transporting machine inter-state.

CAUTION: Block header safely so it will not move. Lower reel safety stops.

Remove header from machine.

Drive machine over end rows or bumps to jar and shake dirt loose. Shut OFF engine, set parking brake and remove key.

Open or remove all doors and drain holes.

CAUTION: Sound horn (A) to clear everyone from area. Stay clear of machine when discharging chaff.

Start engine and let separator run until chaff stops coming out rear of machine.

Lower engine rpm to low idle and engage separator several times. Running the separator at low idle removes dirt from inside the rotor.

Move throttle to high rpm and run for a few minutes. Repeat cycle until chaff no longer comes out rear of machine.

CAUTION: Keep bystanders clear of machine when discharging chaff.

Drive machine onto blocking so right-hand side is about 150 mm (6 in.) higher, or park on incline so dirt can run out.

CAUTION:

H39607
H39607-UN-11OCT88

Shut OFF engine, set parking brake, remove key, block wheels and lower feeder house safety stop.

When working with compressed air in dusty conditions, you must wear goggles and dust mask for personal protection. Air hose must have a 2 m (6 ft.) wand (end).

Start at top of machine and work down.

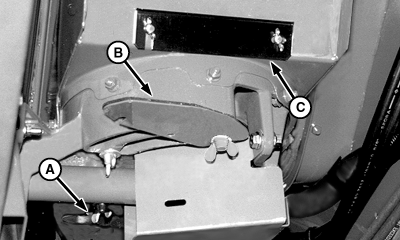

H62230
H62230-UN-19JAN00

H83719
H83719-UN-10JUN05

A - Cleanout Door

B - Cleanout Door

C - Cleanout Door

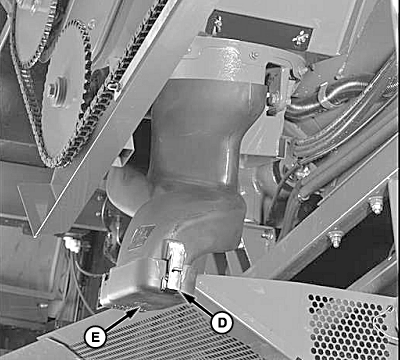

D - Latch

E - Cleanout Door

Open cleanout doors (A), (B) and (C).

IF EQUIPPED: Release latch (D) and open cleanout door (E).

Clean grain from under grain tank cross augers over to the sump.

Clean grain from edges of unloading auger sump to the bottom. Grain must be cleaned out from doors standing on ground.

H87850
H87850-UN-10APR07

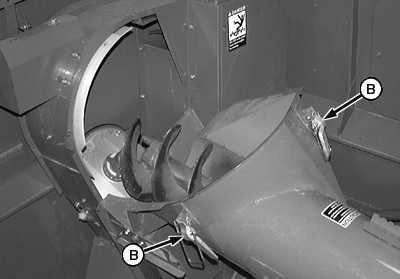

H51797
H51797-UN-15JAN99

A - Sample Trough

B - Clamps

Remove grain tank sample trough (A) and place in storage position inside grain tank.

Release clamps (B) and lower auger.

Clean top area and down into clean grain elevator to clean elevator chain. Clean all sides.

H76204
H76204-UN-28APR03

A - Clamps

B - Grain Tank Window

Loosen clamps (A) and swing grain tank window (B) up.

Clean out area behind cab, around primary countershaft and over separator.

H87627
H87627-UN-13MAR07

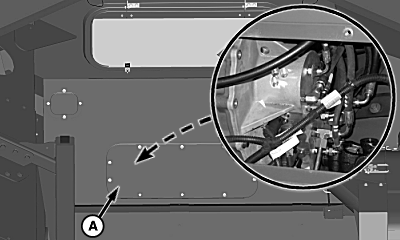

A - Access Door

IF EQUIPPED: Remove access door (A) on front side of grain tank and clean material out around multi-speed feeder house drive gearcase.

H82407
H82407-UN-09FEB05

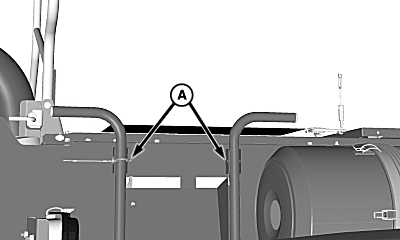

A - Quick-Lock Pins

Clean engine compartment area. Ladder can be moved by removing quick-lock pins (A) and lifting bottom of ladder out of slot.

H82409
H82409-UN-09FEB05

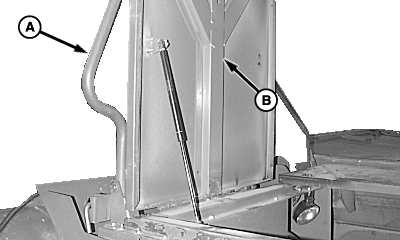

A - Handrail

B - Engine Access Cover

Raise handrail (A) and raise engine access cover (B).

H87208
H87208-UN-05APR07

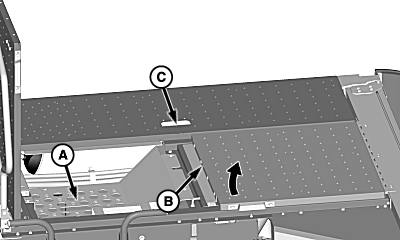

A - Access Step

B - Engine Access Cover

C - Engine Access Cover

Stand on access step (A) to raise engine access covers (B) and (C).

Clean area around separator and both sides of engine.

Clean entire engine compartment area, especially under engine.

Wipe up any oil or grease found on the engine area.

H86740
H86740-UN-23OCT06

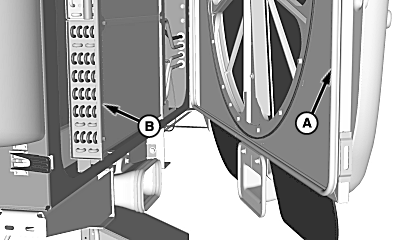

A - Rotary Screen Door

B - Condenser

Open rotary screen door (A) and clean the following areas from inside out: radiator, oil cooler, condenser (B), and rotary screen.

H62232
H62232-UN-19JAN00

H62233
H62233-UN-19JAN00

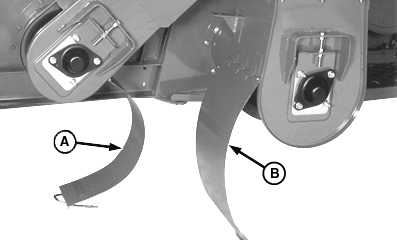

A - Tailings Elevator Door

B - Clean Grain Elevator Door

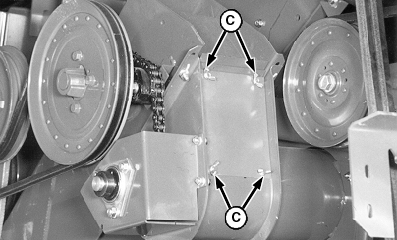

C - Wing Nuts

Open lower tailings elevator door (A) and clean grain elevator door (B).

Remove wing nuts (C) and remove door at upper end of tailings elevator.

Clean down sides of elevator and clean out cross auger trough.

H75117
H75117-UN-10FEB03

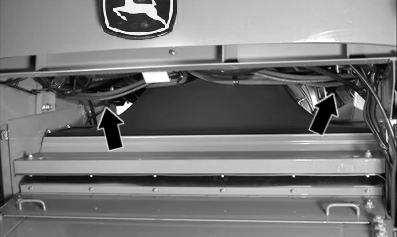

Clean out chaff between separator and sides of machine.

H76150
H76150-UN-24APR03

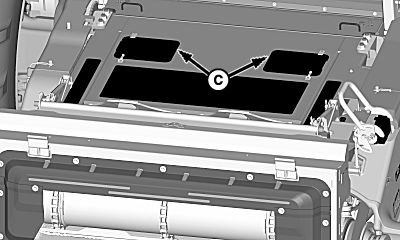

H90905
H90905-UN-27FEB08

A - Nuts

B - Feeder House Door

C - Feeder House Door

Loosen nuts (A) on each side of feeder house door and push nuts towards center of feeder house.

Pull door forward to remove.

Clean feeder house through top doors (B) and (C).

Lift conveyor chain and let chain snap back several times while cleaning.

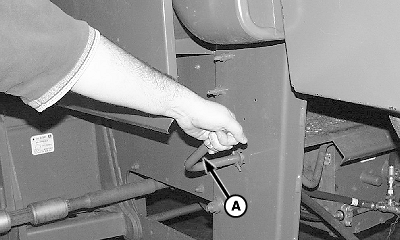

H74779
H74779-UN-14JAN03

A - Handle

Lower stone trap and feed plate using handle (A). Clean areas out.

H62265
H62265-UN-19JAN00

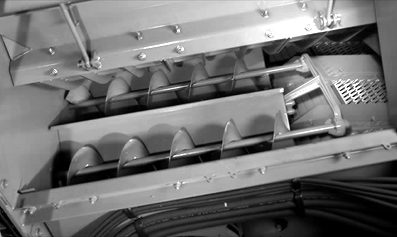

H52708
H52708-UN-23MAR99

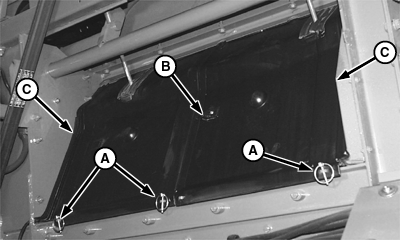

A - Quick-Lock Pins

B - Spring Latch

C - Separator Covers

Remove quick-lock pins (A), spring latch (B) and separator covers (C). Use scraper to loosen material, and clean out through sides of machine.

H52709
H52709-UN-23MAR99

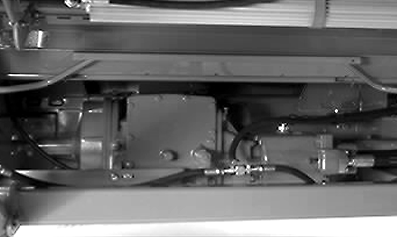

Clean off top of axle and transmission.

H52710
H52710-UN-23MAR99

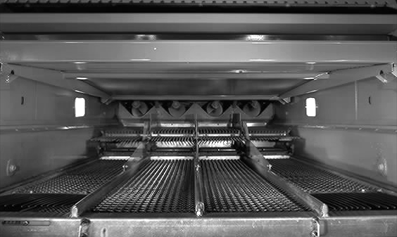

Open sieve and chaffer as far as possible and clean.

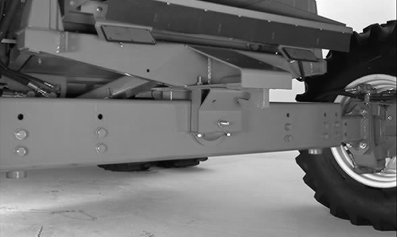

H52711
H52711-UN-23MAR99

Clean rear axle area.

H62140
H62140-UN-14FEB00

H62141
H62141-UN-11JAN00

A - Quick-Lock Pins

B - Lock

C - Right-Hand Rear Shield

D - Middle Shield

Remove quick lock pins (A) and turn lock (B) counterclockwise to unlock. Remove right-hand rear shield (C) and middle shield (D). Clean out fan area.

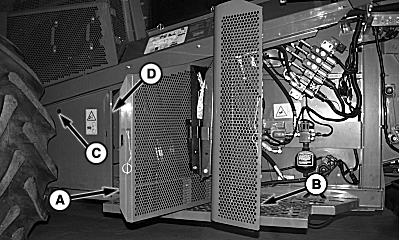

H65979
H65979-UN-29JAN01

A - Side Shields

B - Side Shields

C - Lock

D - Shield

Remove quick-lock pins and open left-hand side shields (A) and (B) and clean area.

Turn lock (C) counterclockwise and remove shield (D).

H62234
H62234-UN-19JAN00

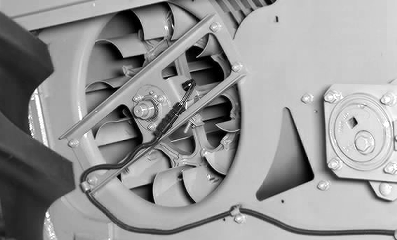

Clean area around fan.

H69985
H69985-UN-13SEP01

A - Switch

Raise chopper completely with switch (A).

H86569
H86569-UN-12SEP06

A - Wing Nut

B - Handle

Loosen wing nut (A) and use handle (B) to disengage knifebank and clean chopper.

H62236
H62236-UN-19JAN00

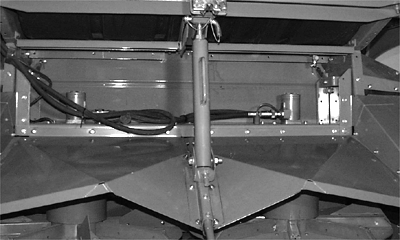

Clean chaff from spreader drive area and spreader hood.
