Automatic Self-Leveling Shoe Switch (Black) (Optional)

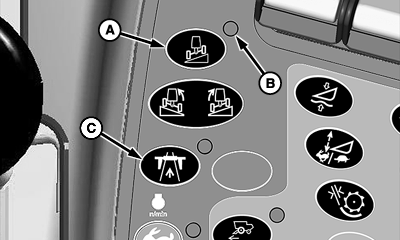

H85900-UN-17NOV06

A - Automatic Self-Leveling Shoe Switch

B - Indicator Light

C - Road Transport Disconnect Switch

System Requirements:

• Road transport disconnect switch (C) must be in field position.
• Separator is engaged.

Press automatic self-leveling shoe switch to activate automatic leveling system. Indicator light (B) turns ON indicating switch is in automatic mode.

CommandCenter display shows the position of the chaffer and sieve graphically.

A position sensor is used to sense the slope of the machine as it moves across the field. Actuators are used to keep the chaffer and sieve elements level.

NOTE: With automatic self-leveling shoe system activated, manual self-leveling shoe switch can be used to overcome automatic functions (chaffer and sieve may be tilted manually left or right).

Once manual self-leveling shoe switch is released, automatic mode takes over and levels chaffer and sieve to level position.
