Manual Self-Leveling Shoe Switch (Black) (Optional)

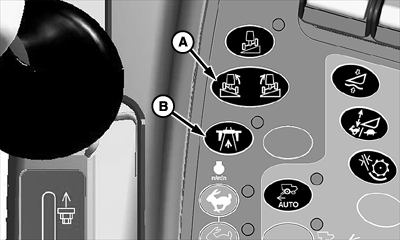

H85899-UN-17NOV06

A - Manual Self-Leveling Shoe Switch

B - Road Transport Disconnect Switch

System Requirements:

• Key switch is ON.
• Road transport disconnect switch (B) must be in field position.

Push and hold left side of manual self-leveling shoe switch to tilt chaffer and sieve left or press and hold right side of manual self-leveling shoe switch to tilt chaffer and sieve right.

NOTE: When manual self-leveling shoe switch is released, chaffer and sieve maintain the current position.

As the machine moves across the field, a pendulum is used to sense the slope of the machine.

NOTE: With automatic self-leveling shoe system activated, manual self-leveling shoe switch can be used to overcome automatic functions (chaffer and sieve may be tilted manually left or right).

Once manual self-leveling shoe switch is released, automatic mode takes over and levels chaffer and sieve to level position.
