Diagnostics and Calibration Pages

H87476-UN-21AUG07

H87477-UN-21AUG07

H87478-UN-21AUG07

Page 1 of 2

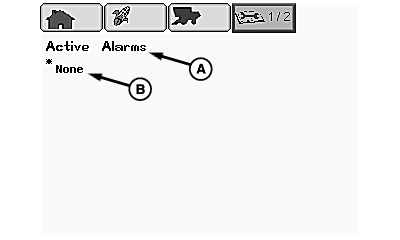

Active Alarms (A):

• None (B) - appears when no alarms are present at this time.

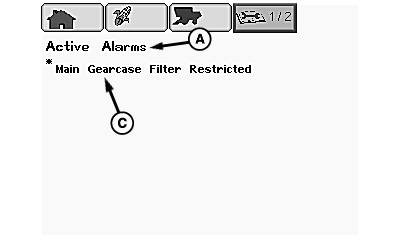

• Alarm Name(s) (C) - appears with the alarm name(s) when a problem is detected in the machine system.

Page 2 of 2

NOTE: Calibrations are done using instructions shown on CommandCenter display. Operator selects which calibration and highlights calibrate button, and is guided through procedure.

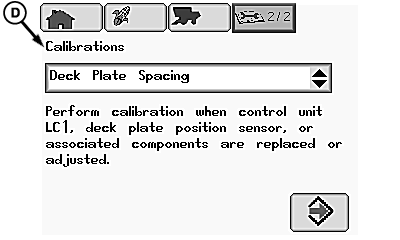

Calibrations (D):

• Refer to When to Calibrate in Calibration Procedures section for listing of calibrations.
