Road Transport Disconnect Switch (Black)

NOTE: Machine will not enter road mode if separator is engaged. Warning alarm screen will appear indicating separator is engaged. Shut OFF separator to engage road transport disconnect switch.

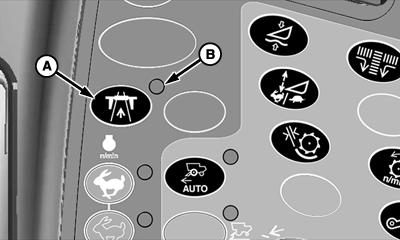

H86951-UN-20NOV06

A - Road Transport Disconnect Switch

B - Indicator Light

When road transport disconnect switch is pressed, indicator light (B) will turn ON indicating switch is in road position. Road transport disconnect switch will prevent the following functions:

• Header Height Resume
• Header Height Sensing
• Contour-Master™
• Reel Raise/Lower and Reel Fore/Aft
• Unloading Auger
• Auger Swing
• Power Folding Auger (If Equipped)
• Separator Engage
• Header Engage
• Header Raise/Lower

After transporting machine on roadway and field operation is desired, press road transport disconnect switch for two seconds allowing indicator light to turn OFF and allowing desired switch functions to operate again.
