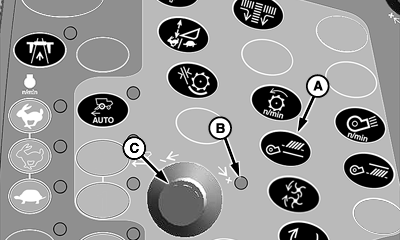

Chaffer Adjust Switch (Black) (Optional)

H86957
H86957-UN-20NOV06

A - Chaffer Adjust Switch

B - Indicator Light

C - Selection Dial

Chaffer adjust switch (A) allows operator to adjust chaffer clearance from inside cab as determined by operator.

  1. Press chaffer adjust switch.

  2. Indicator light (B) will come on indicating setting can be adjusted

  3. Turn selection dial (C) towards plus (+) symbol to increase chaffer clearance or towards minus (-) symbol to decrease chaffer clearance.

  4. CommandCenter display will show operator adjustment setting.

OUO6075,00005EF-19-20070330
