Four Wheel Drive Switches (Orange) (Optional)

IMPORTANT: To prevent damage, do not switch four wheel drive ON or OFF while driving machine at maximum travel speed. Reduce speed to half of maximum speed.

Turn four wheel drive OFF before going down steep grades.

In conditions that cause high pressure in the hydrostatic system and machine slows or stops, move multifunction control handle to neutral and shift transmission to a lower gear.

It is ok to switch between low (turtle) and high (rabbit) settings on the "GO" while harvesting.

H85887-UN-17NOV06

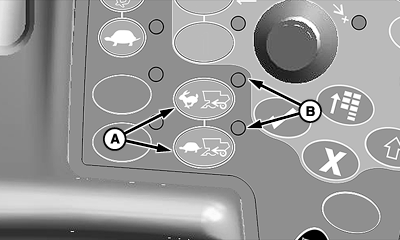

A - Four Wheel Drive Switches

B - Indicator Lights

Press either four wheel drive switch once to turn ON or once to turn OFF. Indicator light (B) above either switch will turn ON indicating which button was selected.

Press bottom switch (turtle) when more traction is needed or top switch (rabbit) when higher speeds are required.

NOTE: It is normal for front wheels to spin out (lose traction) before rear wheels in most conditions. In extremely muddy conditions, it may be necessary to apply both brakes momentarily to increase hydrostatic pressure to four wheel drive motors. If rear wheels spin excessively, shift transmission to a lower gear.

It is recommended that four wheel drive be left in low (turtle) speed allowing the machine to operate at maximum torque capacity. It is recommended to use high (rabbit) speed only to allow rear wheels to spin out faster than ground speed when required.

CAUTION: Ground speed increases when turned OFF and decreases when turned ON.
