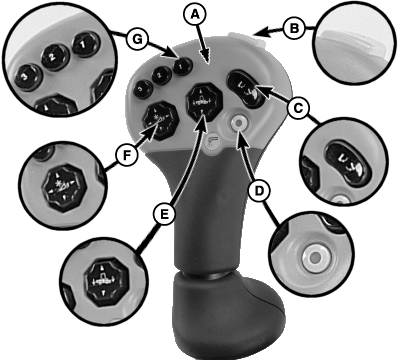

Multifunction Control Handle (Orange)

H85888-UN-10MAY06

A - Forward and Reverse Control Handle

B - Quick Stop Switch

C - Unloading Auger Swing Switch

D - Unloading Auger Drive Engage/Disengage Switch and Indicator Light

E - Header Raise/Lower Switch and Contour-Master Tilt Switch (Optional)

F - Reel Raise/Lower, Reel Fore and Aft (Optional), Feeder House Backshaft Speed, Adjustable Corn Head Deck Plates (Optional)

G - Activation Buttons (1, 2, 3)
